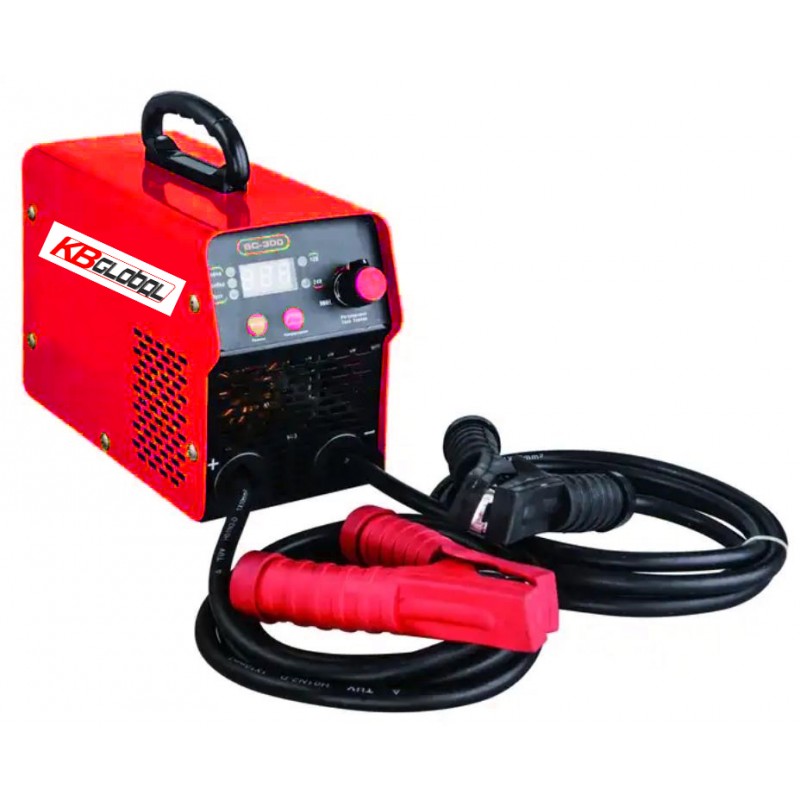

Inverter battery charger 12 and 24 V with starting function KBCH550A

Product Description

KBCH550A rectifier for charging 12 and 24 V batteries with starting function.

The device has protection against short-circuit and reverse polarity.

Single-phase power supply.

TECHNICAL PARAMETERS:

•         Input voltage (V): 230
•         Frequency (HZ): 50
•         Charging voltage (V): 12/24
•         Max. boost power (KW): 6.6
•         Charging current (A): 5-100
•         Max. starting current (A): 550
•         Rated voltage range (V): 170-225
•         Rated battery capacity Ah 15h (min/max): 25-800
•         Insulation class: H / IP23
•         Net weight: 4.5kg
•         Dimensions: 330x130x225mm
•         Charging cable: 1.5 m
•         Power cable: 2.1 m x 2.5 mm2
