Semi-automatic tyre changer CASC502S

Semi-automatic tyre changer CASC502S

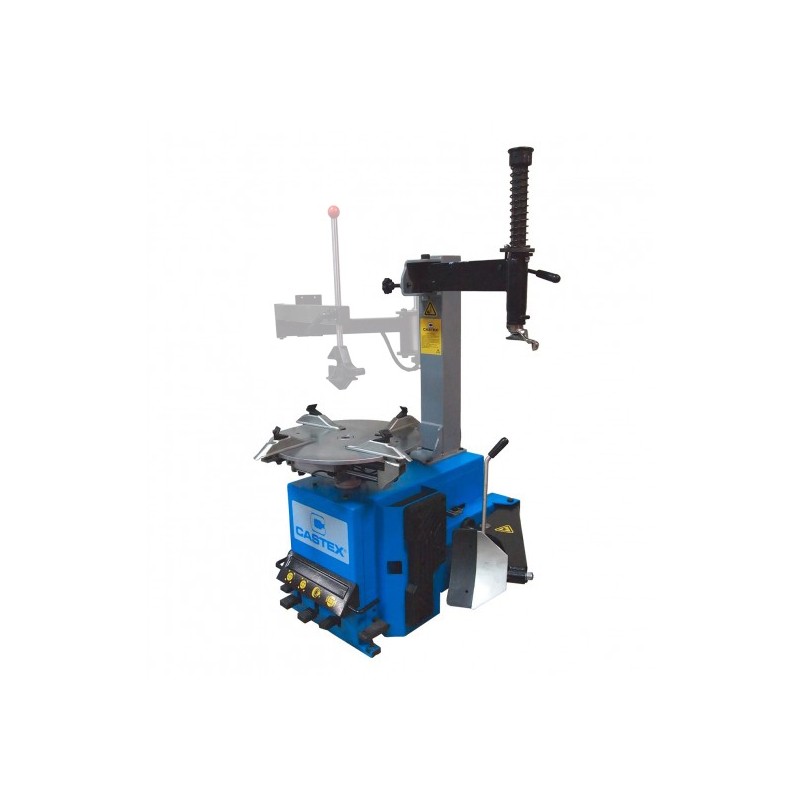

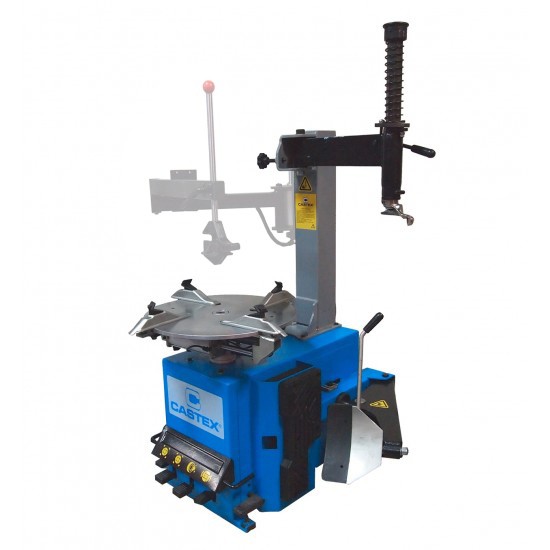

The CASC502S tire changer is designed for mounting and dismantling tires from passenger cars, vans and motorcycles. In the case of the latter, it is enough to purchase additional equipment in the form of a suitable adapter in order to easily remove the motorcycle tire from the rim. The presented model of the fitting is characterized by an ergonomic design and an arm swinging manually to the side, which allows comfortable work in small rooms and increases the comfort of work in the case of mobile vulcanization services.

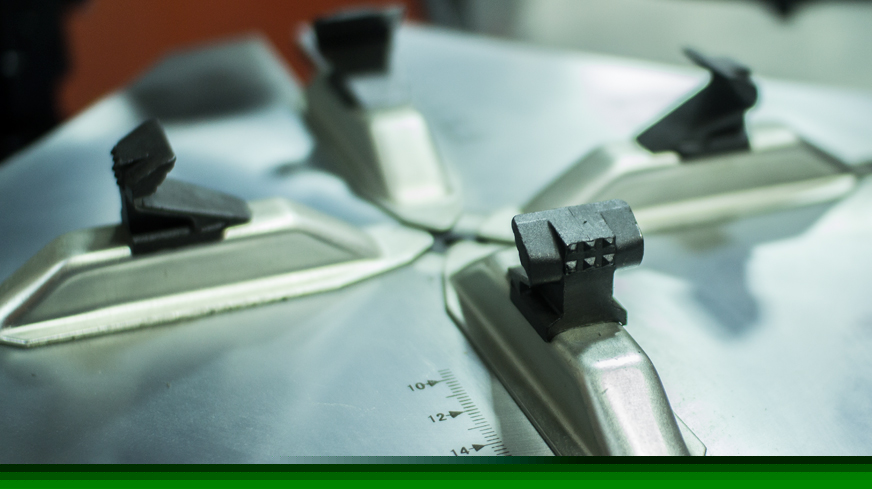

The CASC502S tire changer is designed for wheels up to 21 "in diameter (internal mounting of rims). It has a table with four jaws, controlled by solid and reliable actuators. In addition, the machine is characterized by high quality control mechanisms for both electrical and pneumatic installations. Cassette driver used in CAS502S allows to obtain a force of 2,500 kg, and its contoured shape makes it easier to remove the tire in a significant way.

This product does not have an auxiliary arm - there is the possibility of additional equipment:

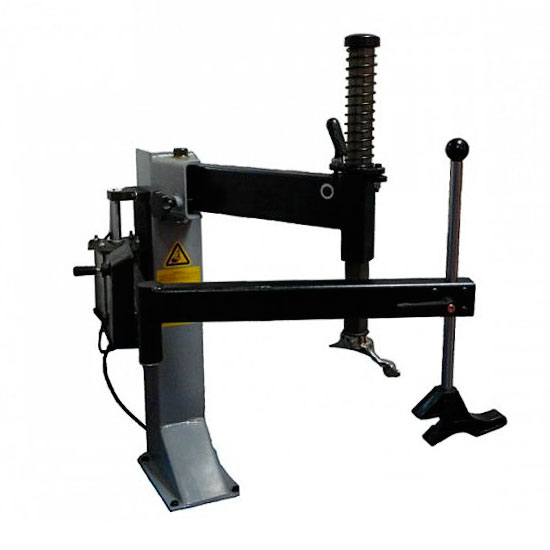

You can equip the machine with an auxiliary arm to support the tire pressure during disassembly and assembly of tires for both standard, low profile and run flat tires (see the auxiliary arm).

Advantages:

• Stable and massive construction,
• Versatile use - suitable both for passenger car tires and motorbikes (can be used stationary in the workshop, but also as a mobile service equipment)
• An uncomplicated design with a wide range of wheel handling
• Easy and convenient control using foot pedals
• High quality pneumatic, electrical and mechanical components
• Large actuator of the punching arm
• A massive table, controlled by two cylinders
• Protection against damage to the rim
• Possibility of changing the power supply from 400V to 230V

Frequently Asked Questions

How is the CASC-502S semi-automatic cylinder different from the CASC-502?

The main difference is due to the design of both machines. In the case of semiautomatic assemblies, we have to deal with the arm swinging side by side. In addition, it is worth noting that the CASC-502S is smaller and lighter in comparison with CASC-502.

Does the tire changer support runflat tires?

The CASC-502S tire changer is able to handle this type of tires. However, we recommend using an auxiliary arm.
