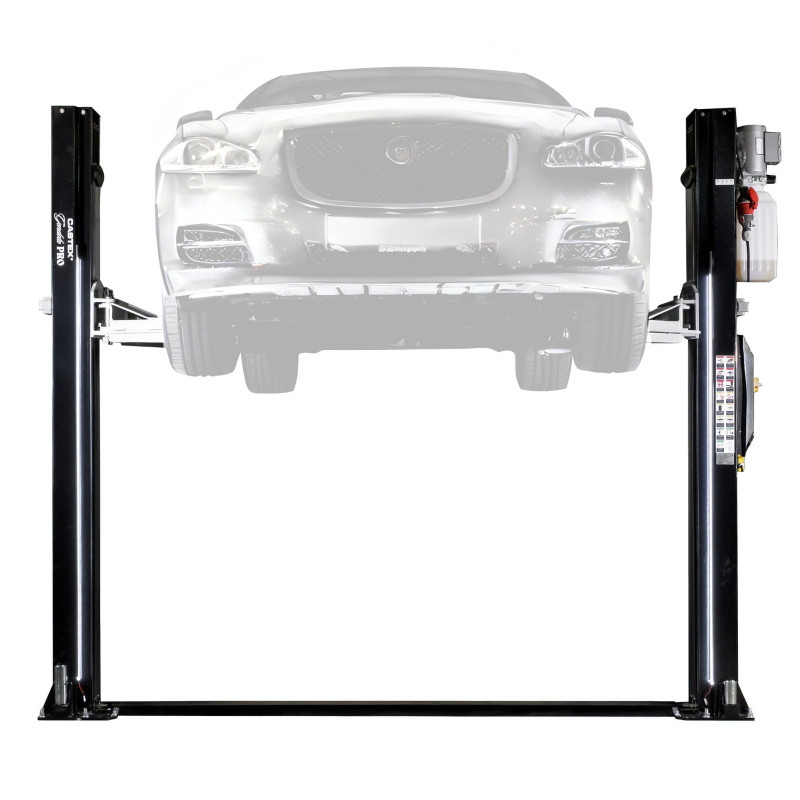

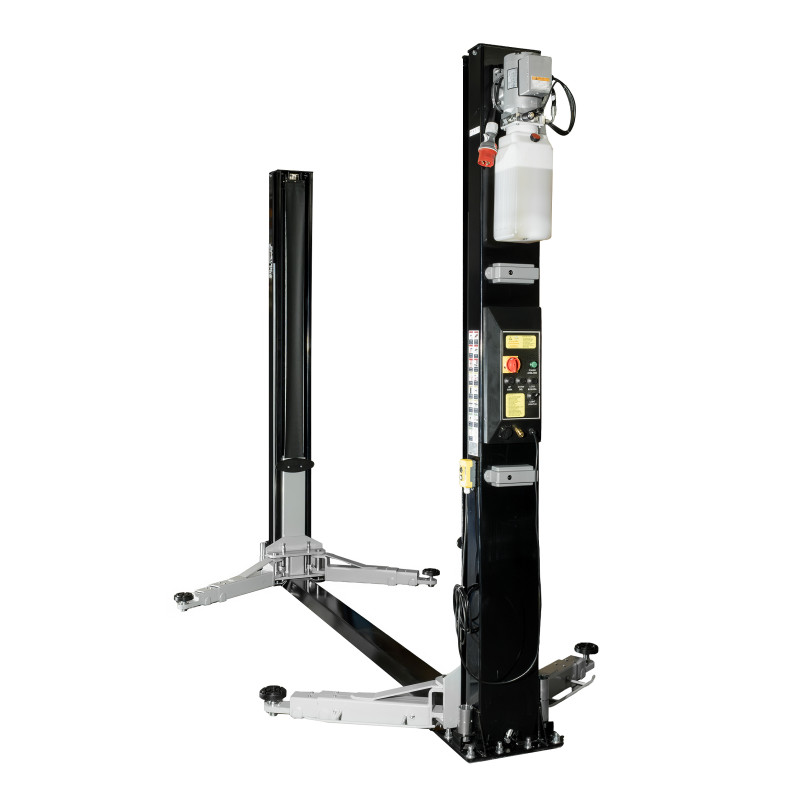

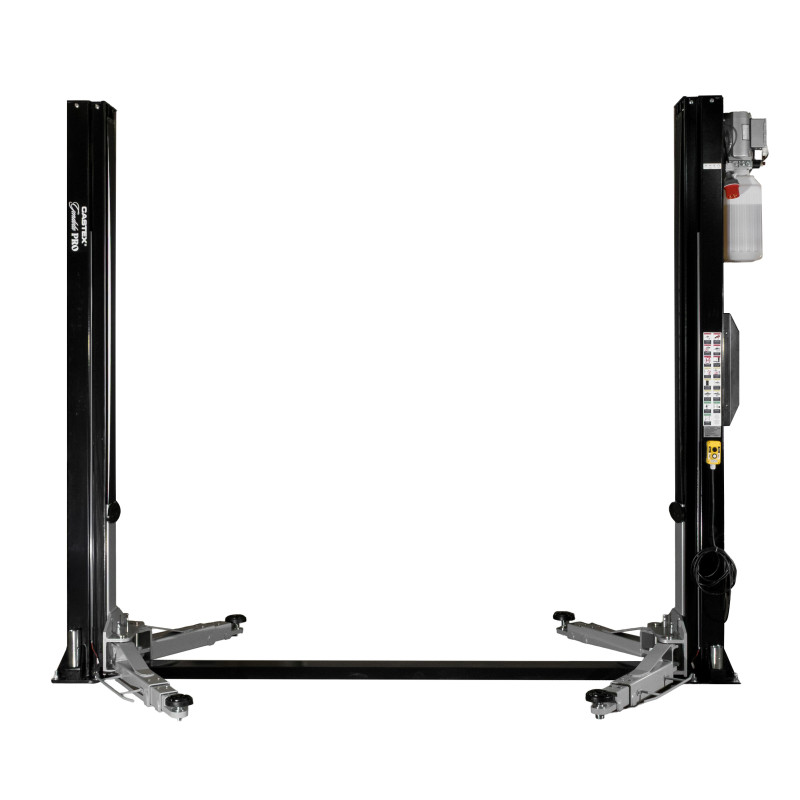

The QJY4.5-DG-PRO automatic two column electro-hydraulic car lift with a lifting capacity of 4500kg is designed for passenger and delivery vehicles with a total weight not exceeding 4,5 tons.
Lifting capacity: 4.5 T
“S”-type column – reinforced stability and durability

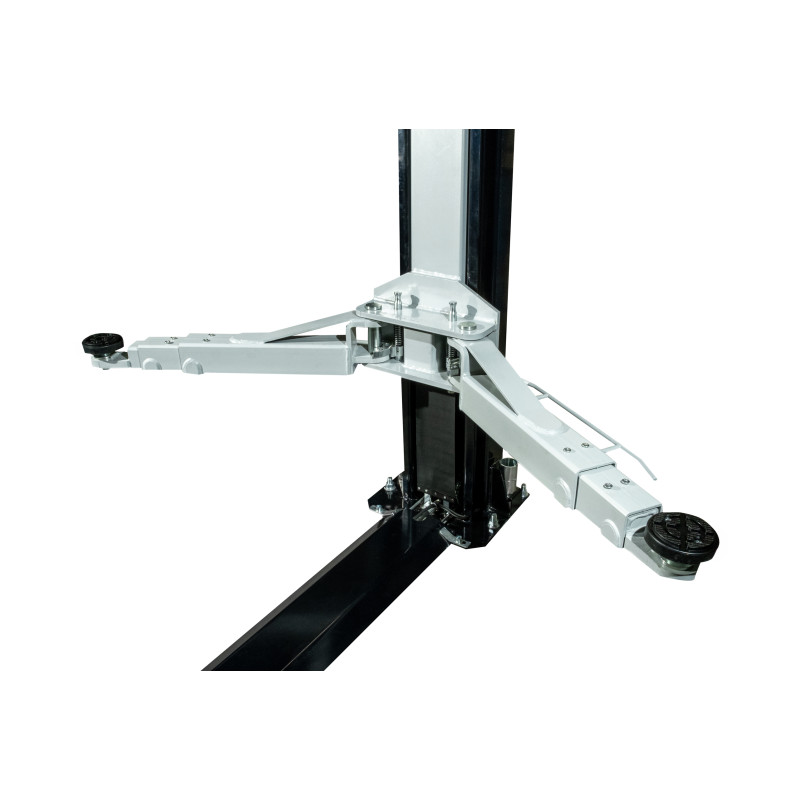

3 + 3 arms – wide adjustment range (700–1400 mm)
230 V socket and pneumatic connector included
4 × LED lights – excellent visibility in the work area

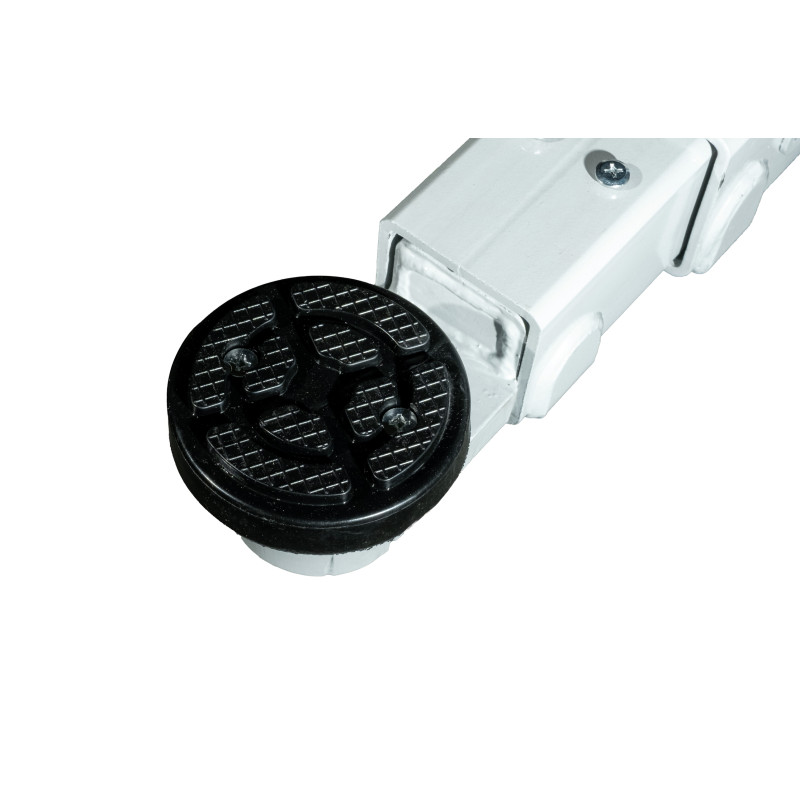

Adjustable adapters and bus cone adapters

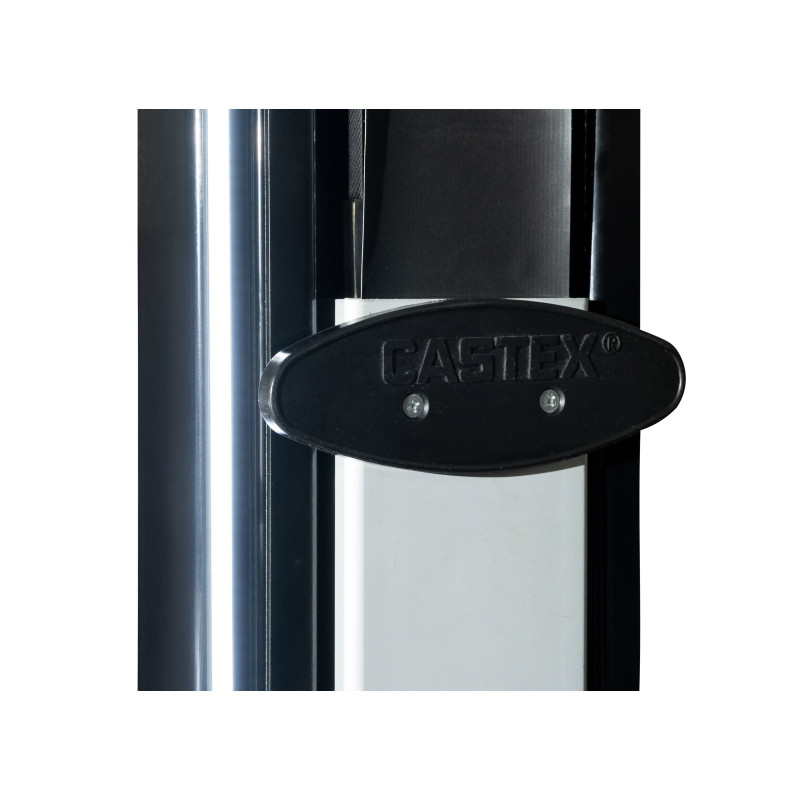

Secure door protection panel – prevents vehicle damage
Electromagnetic locks – maximum safety and precision

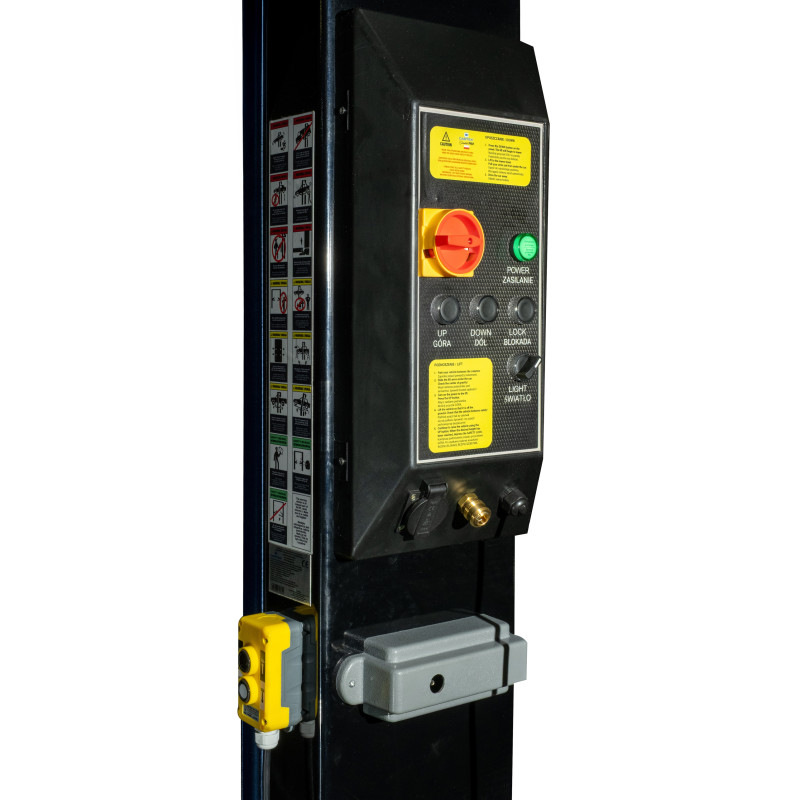

Additional remote control – convenient operation from distance
Colour: black blue (RAL5004)
Max. lifting height: 1900 mm
Min. lifting height: 115 mm
Width between columns: 2820 mm
Column height: 2824 mm
Arm range: 700–1400 mm
What is the difference between an automatic and semi-automatic lift? The main difference is the locking system. The locks of an automatic lift are released automatically by an electromagnetic system controlled from the control panel. A semi-automatic lift is equipped with mechanical interlocks which require the manual release of the interlocks through linkages before lowering the vehicle. Apart from the locking system, the automatic and semi-automatic lifts differ in many technical parameters, the technical data of each model is available on our website.
What are the floor and installation requirements? The installation requires a concrete floor, type C20/25 (former class B25), minimum thickness 300 mm, dimensions 1000mm x 4000mm, and electrical connection 230V.
What hydraulic oil should be used? Use 10 liters of HV/HL 46 type hydraulic oil.
