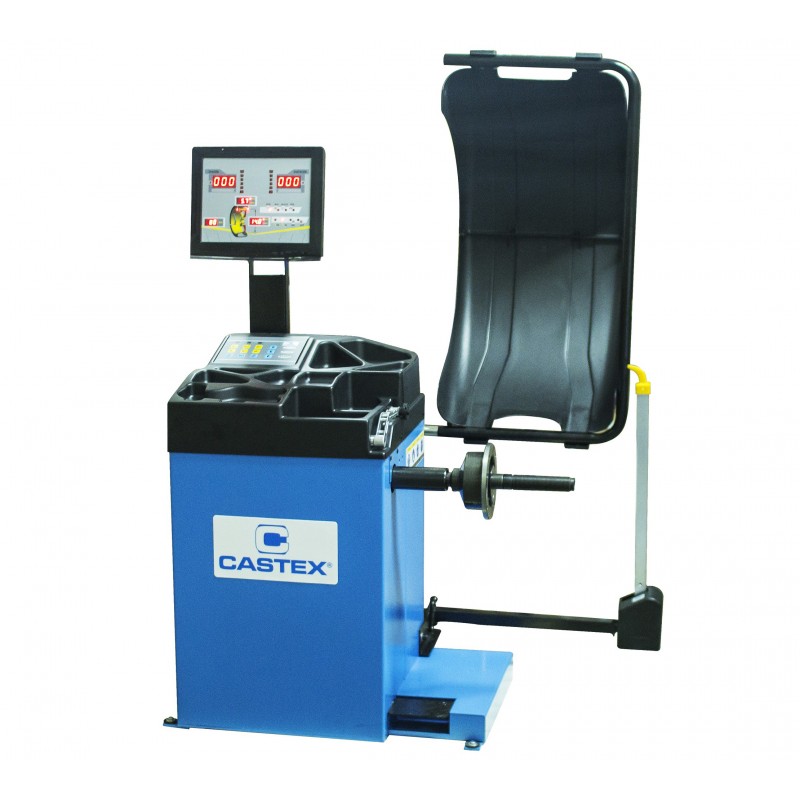

Automatic balancing machine with an arm CASB2000CPW

Reference: CASB2000CPW

Add to compare

Compare (0)

Wyważarka automatyczna CASB2000C z ramieniem

8 132,76 zł tax incl.8132.76 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Availability: This product is no longer in stock

Details

Basic equipment

A set of cones and basic equipment ensure a wide range of applications.

Brake

Increases work comfort.

Dynamic and static balancing

It allows you to eliminate any type of imbalance.

Liquid crystal display

It's not only a matter of design, but also easier functionality.

Plastic cover working in the START / STOP system

It accelerates work on the machine.

Additional measuring arm

Used to measure the width.

Functionality

Capacity	0,2 [kW]
Power supply	230 [V]
Balancing accuracy	+/- 1 [g]
Max wheel weight	65 [kg]
Balancing speed	200 [obr/min]
Max rim diameter	24 [inch]
Max rim width	20 [inch]
Meansuring time	8 [s]
Noise level	70 [dB]

Product description

Automatic balancing machine CASB-2000C is designed for balancing steel and aluminum wheels of passenger cars, vans up to 3.5T and motorcycle wheels and all other types of wheels, the weight and dimensions of which do not exceed the maximum parameters included in the specification of the device.

In addition, the machine is equipped with an automatic calibration of unbalance sensors and sensors, standard ALU programs, as well as a program to optimize the tire to the rim in the case of large imbalances and the option of dynamic and static balancing. The CASB-2000C balancing machine additionally has a liquid crystal screen that facilitates machine operation. Reliable and proven design are only additional advantages of this model.

- Clear LED display with adjustable brightness.
- Automatic measurement of distance and diameter of the wheel.
- Self-diagnosis and autocalibration of the machine.
- 3 ALU functions.
- Extended ALU-S function.
- The function of dividing and concealing the weight.
- Unbalance optimization function.
- Dynamic and static balancing.

Equipment

The basic equipment of the machine includes:

- a set of cones,
- a compass,
- vulcanization pliers,
- a quick-locking nut with a sleeve,
- 36mm threaded shaft,
- 100g calibration weight.

Frequently Asked Questions

How often should the machine be calibrated?

Balancers with time may indicate incorrect values due to operational overload. Manufacturers recommend checking the calibration of the tire and wheel assembly balancer approximately once every 2 weeks if the device is used frequently. Of course, if you observe faulty readings, you should perform the calibration in accordance with the instructions.

Can the balancing machine balance wheels on semi-trailers?

Yes, maybe. It is enough to purchase an additional cone suitable for balancing twin wheels.
