| Power supply | 230 [V] |
| Upper heater | Tak |
| Lower heater | Nie |
| Heating power | 500 W |
| Type of pressure | Dźwigniowy |
| Pressure surface | 120x70 mm |
| Temperature regulation range | 120 - 195 C |
| Dimensions of the vulcanizer | 47,5 x 4 x 34 cm |
| Timer | Tak |
| Interchangeable dies in the set | Nie |
| Height adjustment | Nie |
| Movable arm | Nie |
| Type of joints | Kulowy |

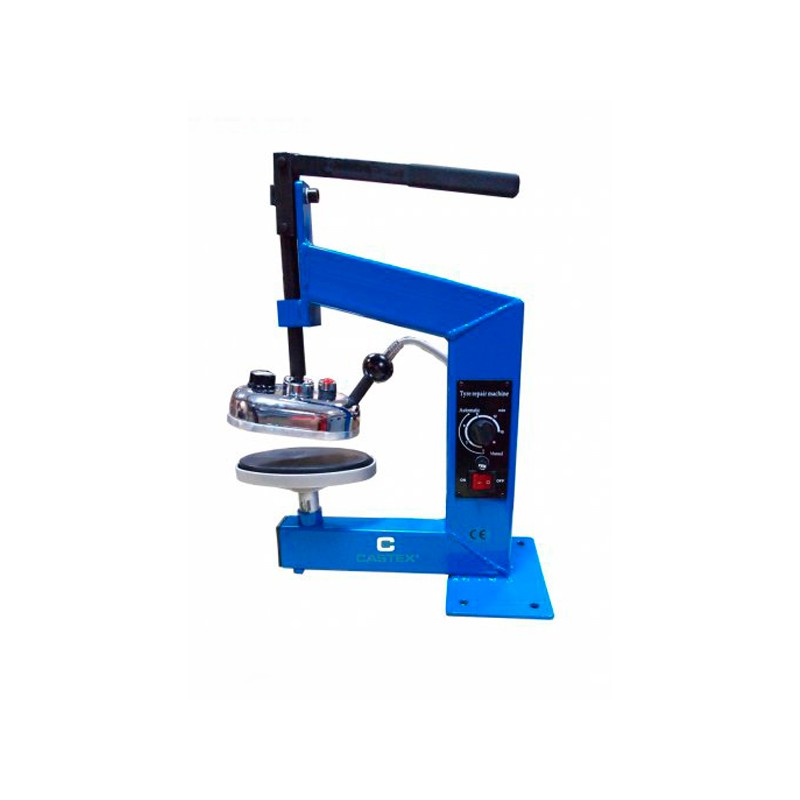

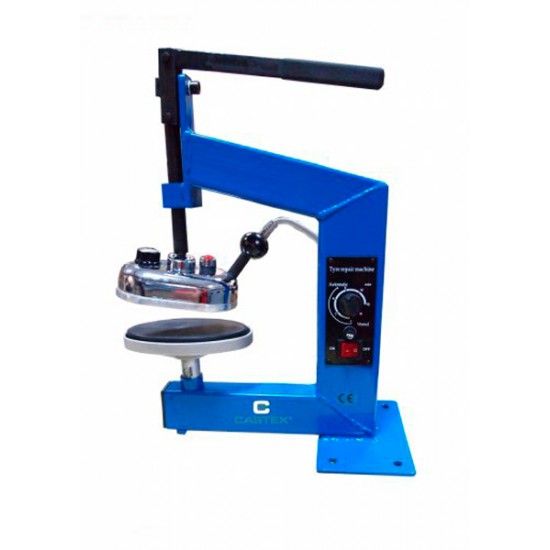

Vulcanizer is a device used to repair tires of cars, trucks, agricultural and large-size cars. Allows for repair in the forehead, shoulder and side of the tire. With the help of a special attachment, you can also paste and bind valves. The vulcanizer is used for complicated damage when cold repair is not enough.
The device is equipped with an upper heater with a power of up to 500 W with adjustable temperature in the range of 120-195 ℃ and a bottom die with a rubber pad stabilizing the tire being repaired. The heater is embedded in the ball joint, while the lower die rotates by 360 °. This optimizes the work due to the easy and accurate adjustment of the term to the shape of the surface being repaired. In addition, the upper terma has a lever pressure. In the presented model of the vulcanizer, the control module is connected to the heater. The heating time is set by means of a knob (maximum 120 minutes), thanks to which continuous supervision of the device is not necessary. The warning lamp informs you whether the vulcanizer is switched on, which increases the operational safety.
This vulcanizer, thanks to its compact size, can be used as a portable device. Stable base with the possibility of permanent screw mounting ensures safety and comfort of work.
Functionality:
- 230v / 50Hz power supply; 0.5 kW x 2,
- upper heater - 500 W,
- pressing surface 120x70 mm,
- heating temperature regulation in the range 120-195 ℃,
- ball joint,
- time switch,
- lever pressure
- rotating bottom matrix,
- mobility - a compact size.
Dimensions:
- height: 47.5 cm,
- width: 4 cm (base),
- length: 34 cm (base).
The AJD-10 vulcanizer is a device used to repair "hot" damage in inner tubes and tires.
The AJD-Z vulcanizer is a device used to repair "hot" damage in inner tubes and tires.
The SK-120 vulcanizer is a device used to repair "hot" damage in inner tubes and tires.
