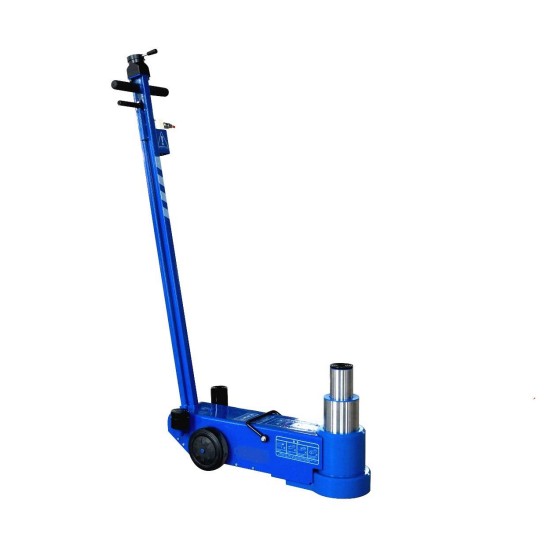

Hydraulic - pneumatic lift 25 / 50t with a two-stage actuator T22050

tax incl.7779.63 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Product description

Pneumatic lifter with two-stage actuator.

The presented lift is equipped with a two-stage cylinder:

  • I lifting capacity 25T
  • II 50T

Cooperation with air compressors and the use of pneumatic drive enables quick lifting without the need for large amounts of force. Lifting and lowering is carried out by means of a valve located on the adjustable handle of the hoist, which can be set in several positions at the preferred angles. The large hydraulic wheels ensure easy movement of the hydraulic-pneumatic lift. Strengthened, resistant to mechanical damage structure and components of the highest quality guarantee trouble-free, optimal operation of the lift.

Technical data
  • Height min. 210 mm
  • Height max. 406 mm
  • Piston stroke 106 mm
  • Extension of the second piston 94 mm
  • Net weight 73 kg
  • The packaging dimension is 1410x300x290 mm
