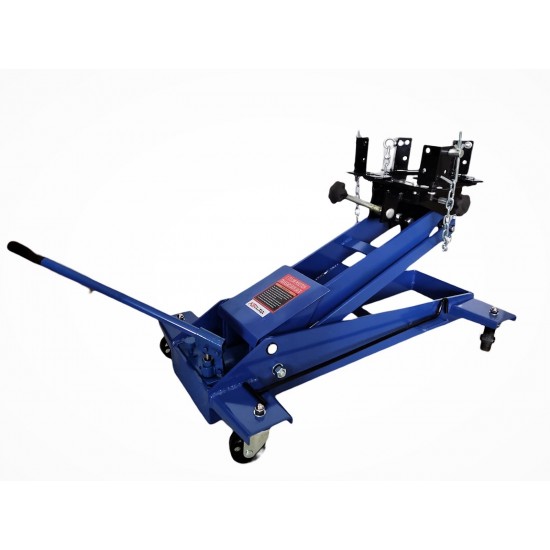

Gearbox lift T60303

Product description

The gearbox lift facilitates assembly and disassembly of gearboxes, engines, differential gears, etc. parts. Its lifting capacity is 1500 kg, which gives the possibility of versatile use in such cars as passenger cars, vans, trucks or van. The equipment is equipped with an adjustable saddle and a hydraulic pump with variable working position and lifting range from 230 to 890 mm. The device has 4 rotating wheels and an additional handle to move the elevator during work.

Technical data:

• Height adjustment: 230 - 890 mm
• Max lifting capacity: 1500 kg (1.5 tons)
• Saddle adjustment: 95 °
• Saddle rotation: 360 °
• Horizontal offset: 90 mm
• Saddle length: 200 mm
• The width of the saddle: 340 mm
• Number of wheels: 4
• Diameter of wheels: 75 mm
• Weight: 73 kg
• Shipping dimensions: (LxWxH) 97 x 55 x 29 cm
• Shipping weight: 83 kg
