Scissor lift QJY-S2E

Reference: QJY-S2E

Add to compare

Compare (0)

7 772,86 zł tax incl.7772.86 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Quantity:

Details

Power

Possibility of changing the power supply of the power plug and plug on 230V.

Blockade

Presentation of blockades in the form.

Functionality

Capacity	3000 [kg]
Power of motor	2,2 [KW]
Max. lifting height	1000 [mm]
Rise / drop time	50 / 40 [s]
Oil pressure	200 [Bar]
Power supply	230 / 380 [V]
Noise level	≤ 70 [dB]
Net / Gross weight	540 / 560 [kg]
Lock system	podwójna automatyczna elektro-magnetyczna

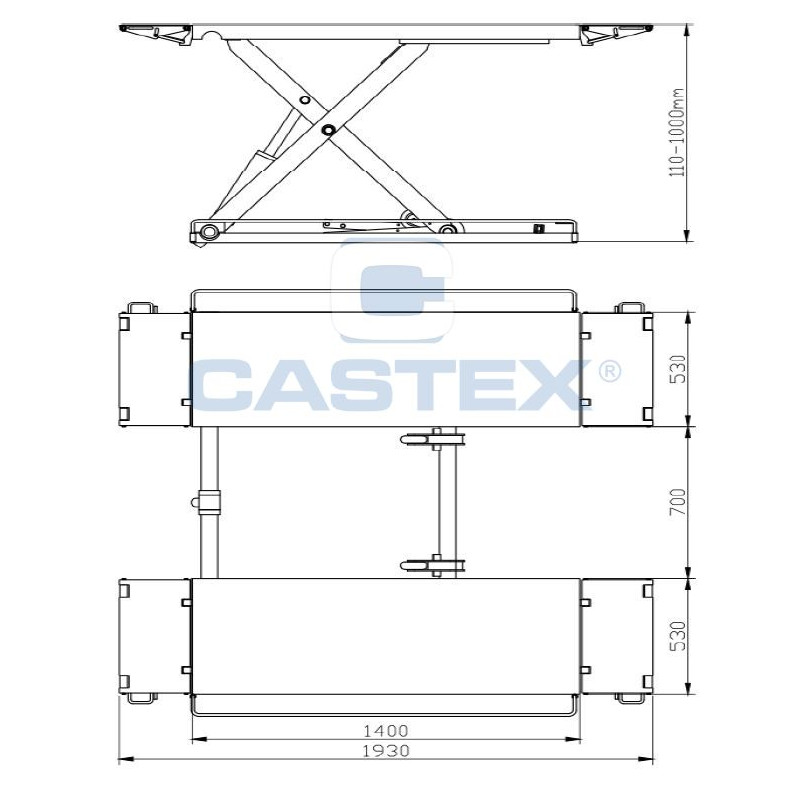

Total width of the lift	2100 [mm] + skrzynia sterująca
Width between columns (internal)	880 [mm]
Width between columns (external)	1800 [mm]
Absolute height of the hoist	110 [mm]
Height relative to the floor level	110 [mm]

Product description

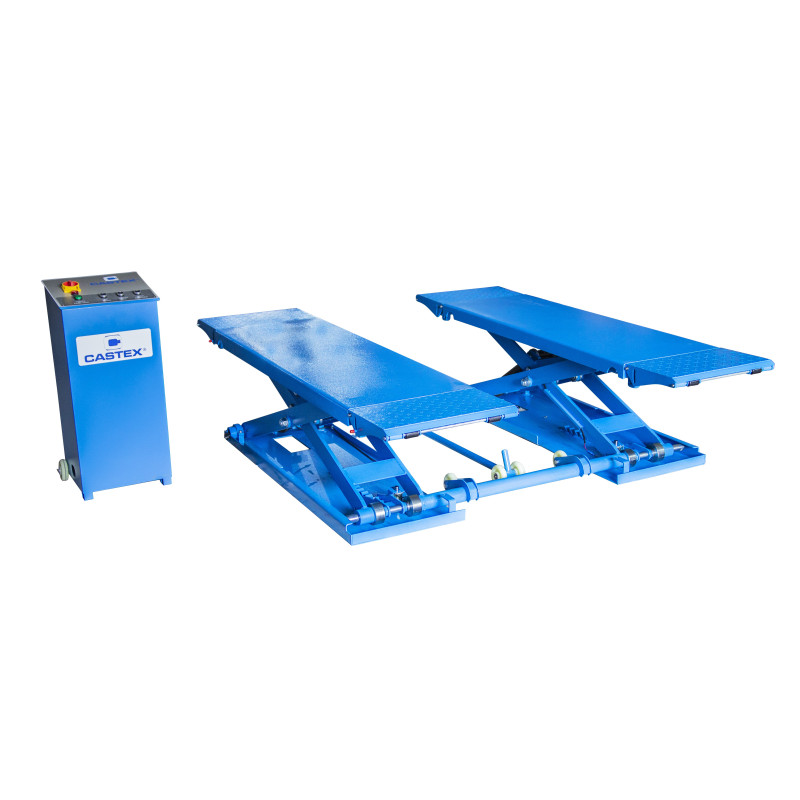

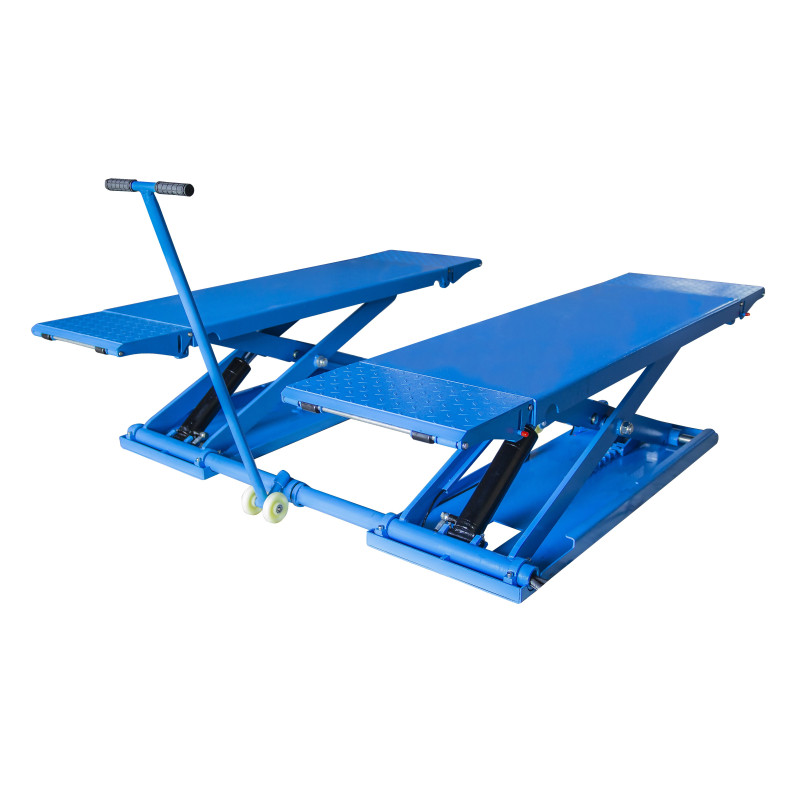

QJY-S2E scissor lift with 3000kg load capacity is designed for work with passenger vehicles with a total weight not exceeding 3 tons.

The hoist is mounted on the floor without the need to prepare a special excavation and spout, its maximum lifting height is 1000mm, while maintaining a very low minimum height of 110mm. The distinctive feature of the QJY-S2E lift from other devices of this type is the lack of having an air compressor, the lift is equipped with a double electro-magnetic safety lock that does not require compressed air to work, designed for the safety of the user, its main advantage is that The whole lifter operation process is in the secured position and is only released for the operator leaving time. This solution prevents erroneous deactivation of the security system and reduces the possibility of uncontrolled leaving the vehicle to zero.

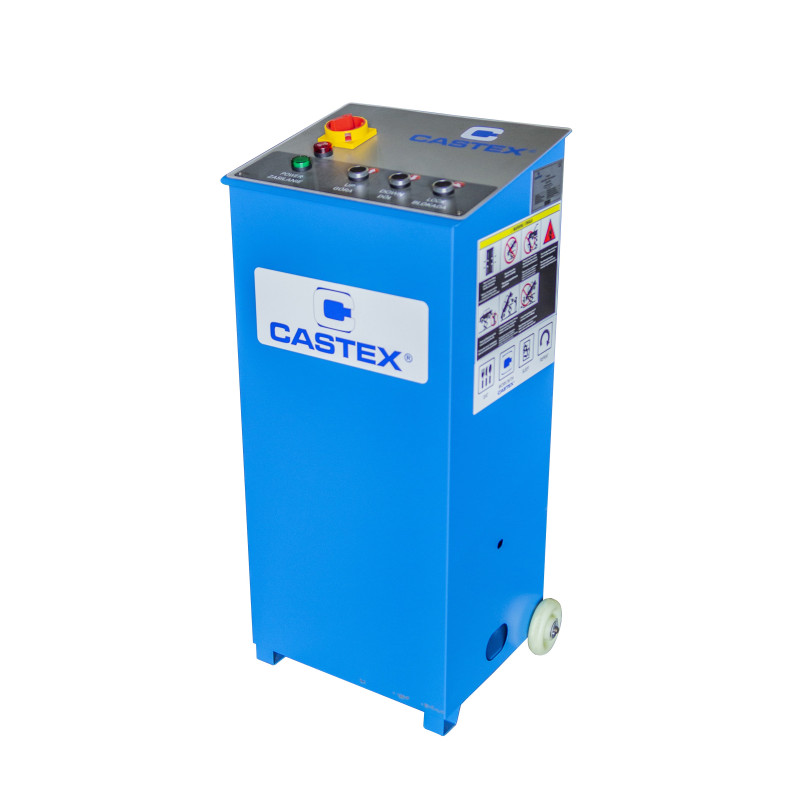

The device uses a number of proven solutions to optimize the durability of your workshop, one of such solutions is the automated control of the electrohydraulic unit and the safety interlock system.

The assembly has been simplified by pre-installing most elements already at the production stage, and the lift includes a set of mounting anchors.

At the order stage, it is possible to change the power supply of the lift with a voltage of 400V for 230V.

Along with the lift, the customer receives complete documentation necessary for proper use and maintenance, allowing for reporting the lift from the Technical Inspection Authority.

Functional characteristics

Features:

- 3000kg load,
- the construction of the lift and control unit adapted for mounting on the floor,
- maximum working height 1000mm,
- 2 hydraulic cylinders,
- solid construction,

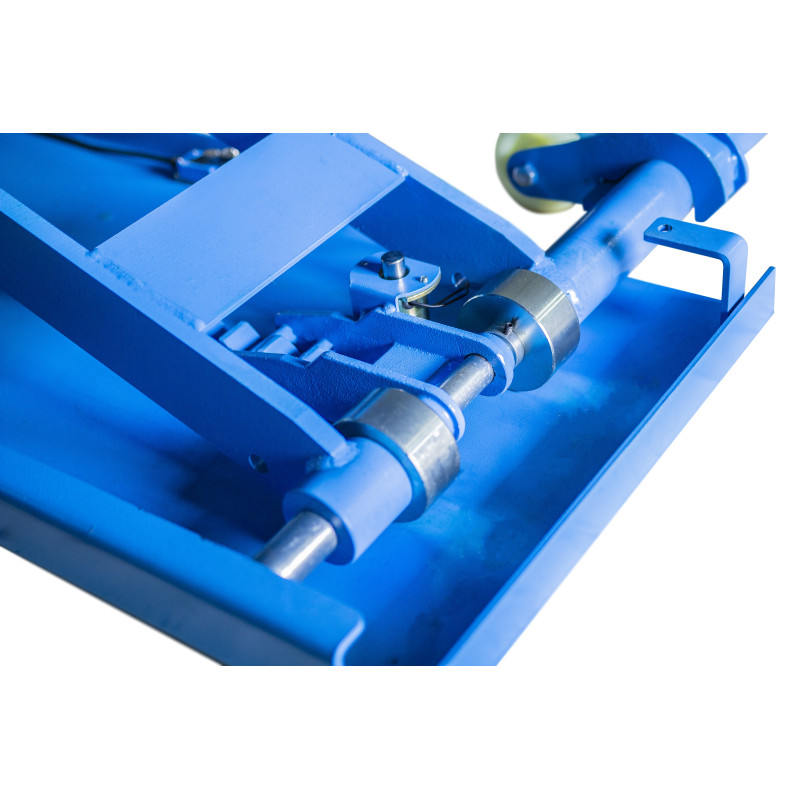

- double electro-magnetic lock for safety and stability,
- optional 230V power supply,
- CE certificate.

Frequently Asked Questions

What is the difference between the QJY-S2E hoist and the QJY-S2 hoist?

The main difference is the safety interlock system, the QJY-S2E lift uses an electromagnetic lock that frees the user from having a source of compressed air such as a compressor.

What are the ground requirements for lift installations?

The floor should be flat, level and level. The minimum concrete thickness is 200mm, concrete type B25.

Which oil should I use in the lift?

The oil for the lift should be HV / HL 46.
