Mobile electrohydraulic scissor lift QJY-S3

Reference: QJY-S3

Add to compare

Compare (0)

8 286,39 zł tax incl.8286.39 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Availability: This product is no longer in stock

Details

Power

Possibility of changing the power supply of the power plug and plug on 230V.

Feet

Presentation of the universality of paws in the form.

Locks

Presentation of blockades in the form.

Mobility

Presentation of mobility in the form.

Functionality

Capacity	2700 [kg]
Power of motor	2,2 [KW]
Max. lifting height	1400 [mm]
Rise / drop time	50 / 30 [s]
Noise level	≤ 70 [dB]
Oil pressure	200 [bar]
Power supply	230 / 380 [V]
Power unit	electrohydraulic
Powder coating (RAL)	5002
Quantity of hydraulic oil	10 [L]
Quality of concrete	B25
Thickness of concrete	300 [mm]
Net / Gross weight	478 / 500 [kg]
Working temperature	-5° /+40 [°C]
Lock system	single manual mechanical
Type of hydraulic oil	46
Type of lift	mobile, scissor lift
Total width of the lift	1000 [mm], 1476 [mm] with arms
Width between columns (internal)	N/A
Width between columns (external)	N/A
Absolute height of the hoist	180 [mm]
Height relative to the floor level	180 [mm]
Package dimensions	2600 x 1080 x 710 [mm]
Number of platforms	1

Product description

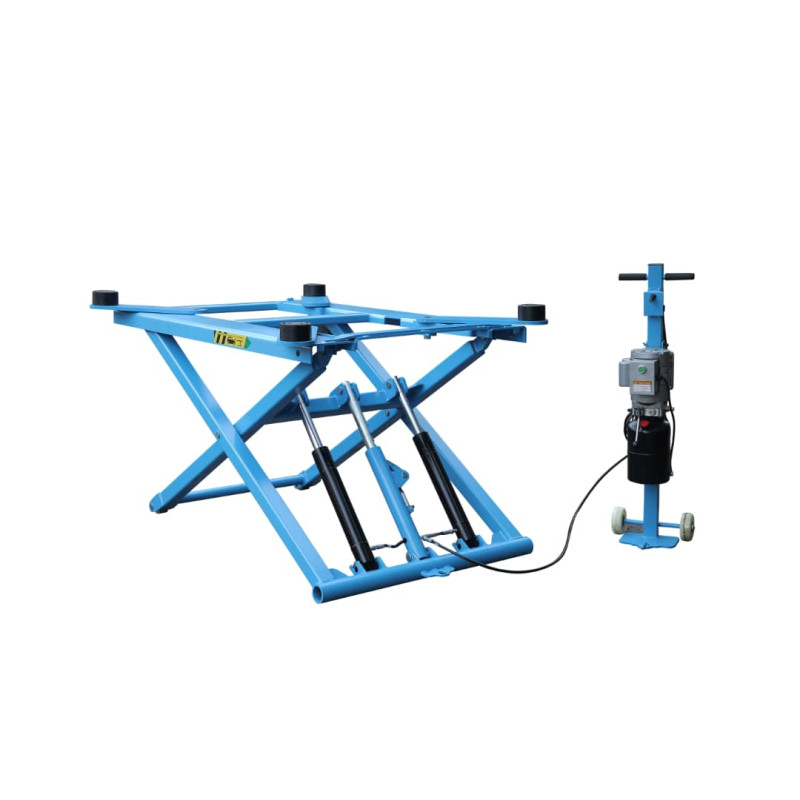

The CASTEX QJY-S3 mobile scissor lift with a lifting capacity of 2700kg is designed for work with passenger and delivery vehicles whose total weight does not exceed 2700kg.

The lift is fully mobile, the special construction of the steering wheel allows you to lift the lift and place it anywhere in the workshop, increasing the possibilities of managing the work space. We obtain a fully mobile work station without the need to complicate the dismantling of the lift.

The hoist is used on the floor without the need to prepare a special excavation and screed. The lift is equipped with a mechanical safety lock designed for the user's safety, its main advantage is that during the entire lifetime of the lift, it is in the secured position and is released only for the time of lowering by the operator. This solution prevents erroneous deactivation of the security system and reduces the possibility of uncontrolled leaving the vehicle to zero.

The hoist is equipped with adjustable load-bearing arms with a wide range of work and independently adjustable subliminal pads.

At the order stage, it is possible to change the power supply of the lift with a voltage of 400V for 230V.

Along with the lift, the customer receives complete documentation necessary for proper use and maintenance, allowing for reporting the lift from the Technical Inspection Authority.

Functional characteristics

Features:

- lifting capacity 2700kg,
- the design of the lift and control unit ensures full mobility of the lift,
- maximum working height of 1400mm,
- solid construction,
- central mechanical blockade ensuring safety and stability,
- two hydraulic cylinders,
- adjustable support arms,
- optional 230V power supply,
- CE certificate.

Frequently Asked Questions

What is the difference between the QJY-S3 scissor lift and the QJY-3.2-1 lift?

The QJY-S3 lift is a mobile device and does not require specialized ground preparation, changing its location takes several seconds, while the QJY 3.2-1 lift is a stationary lifter installed in the floor.

What are the flooring requirements?

The lift requires a horizontal and if possible flat floor, the strength of which is maintained by B20 concrete standards, and its depth is not less than 180mm.

Which oil should I use in the lift?

The oil for the lift should be HV / HL 46.
