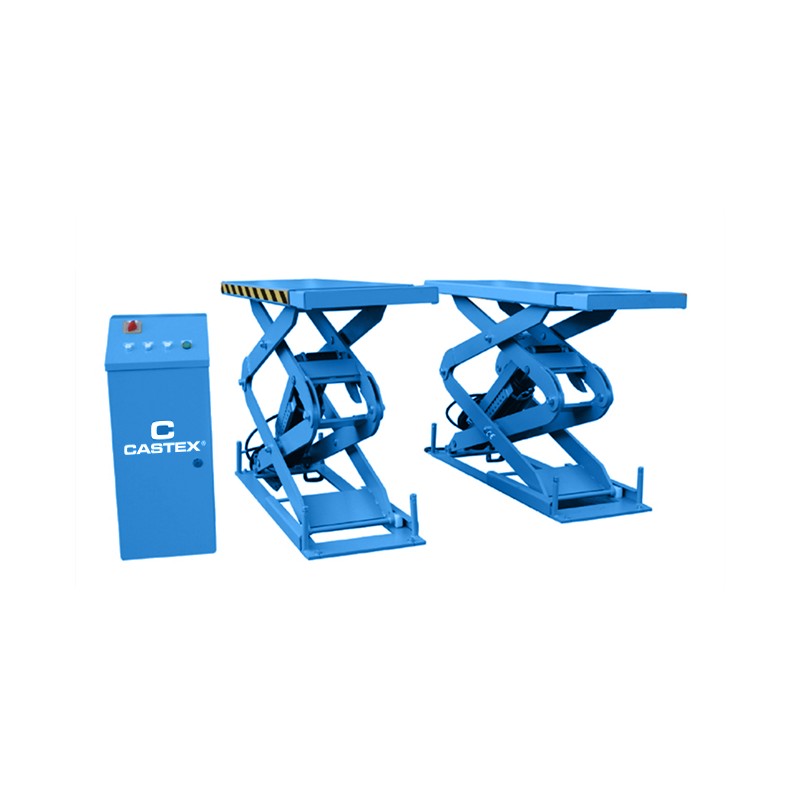

High lifting scissor lift QJY3.2-1

Reference: QJY3.2-1

Add to compare

Compare (0)

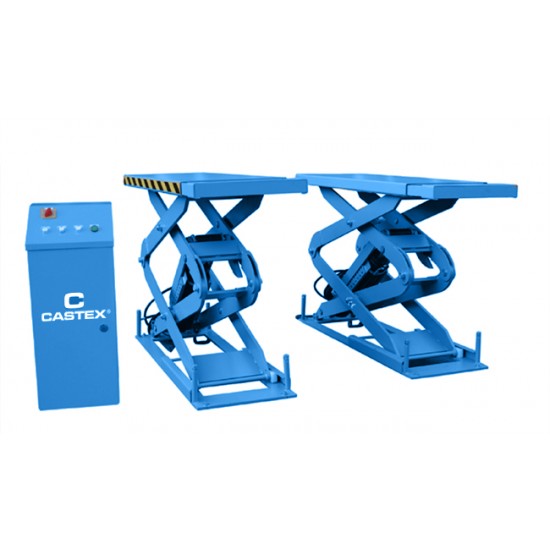

Podnośnik nożycowy wysokiego podnoszenia QJY-3.2-1

11 102,35 zł tax incl.11102.35 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Availability: This product is no longer in stock

Functionality

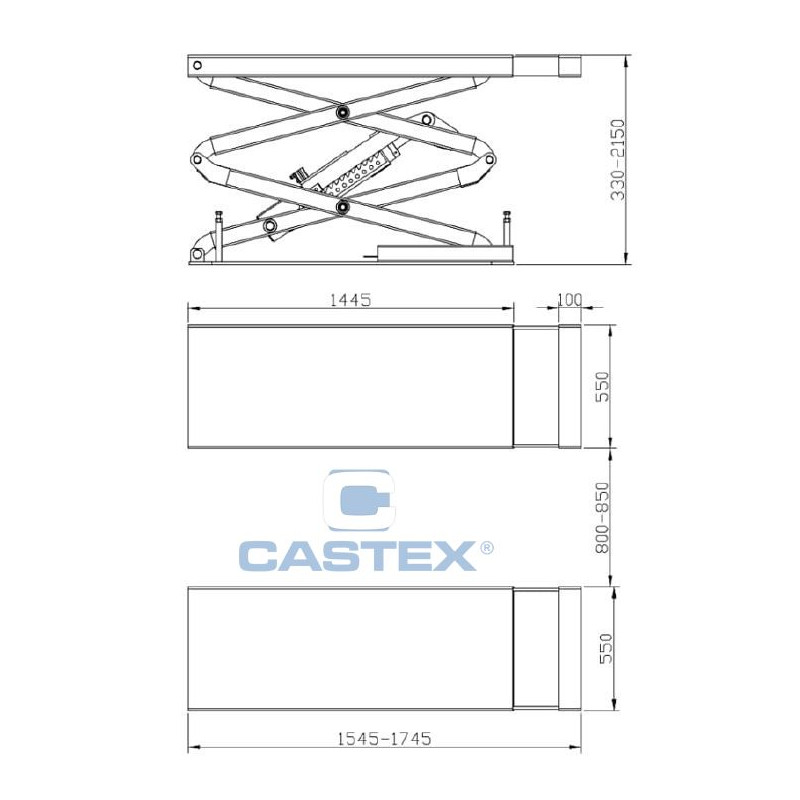

Capacity	3200 [kg]
Power of motor	2,2 [KW]
Max. lifting height	1720 [mm]
Rise / drop time	45 [s] / brak
Oil pressure	200 [Bar]
Power supply	230 / 380 [V]
Net / Gross weight	650 / 670 [kg]
Lock system	podwójny automatyczny elektro-pneumatyczny
Total width of the lift	2020 [mm] + skrzynia sterująca
Width between columns (internal)	780 [mm]
Width between columns (external)	2020 [mm]
Absolute height of the hoist	330 [mm]
Height relative to the floor level	0 [mm]

Product description

The QJY3.2-1 scissor lift with a lifting capacity of 3200kg is designed for work with passenger and delivery vehicles.

The hoist is mounted under the floor so that when it leaves it completely equates with its level, this solution enables the creation of a fully usable road work station, the abandoned lift becomes an integral part of the ground, allowing passage and not disturbing existing communication routes in the workshop. Its maximum lifting height is 1720mm, and a minimum height of 0mm to the ground allows you to work with cars with very low clearance, such as sports cars or tuned suspension. The lift platforms are fully independent which brings it close to two-column lifts enabling work with elements of the exhaust system, auxiliary brake cables, etc. The innovative synchronization system allows only work on one of the platforms giving the possibility of using the jack as a work table for working with motorcycles. The lift is equipped with a double mechanical-pneumatic safety lock designed for the safety of the user, its main advantage is that during the entire lifetime of the lift, it is in the secured position and is released only when leaving the operator. This solution prevents erroneous deactivation of the security system and reduces the possibility of uncontrolled leaving the vehicle to zero.

The device uses a number of proven solutions to optimize the durability of your workshop, one of such solutions is the automated control of the electrohydraulic unit and the safety interlock system.

The assembly has been simplified by pre-installing most elements already at the production stage, and the lift includes a set of mounting anchors.

At the order stage, it is possible to change the power supply of the lift with a voltage of 400V for 230V.

Along with the lift, the customer receives complete documentation necessary for proper use and maintenance, allowing for reporting the lift from the Technical Inspection Authority.

Functional characteristics

Features:

- lifting capacity 3200kg,
- the construction of the lift and control unit adapted for installation in the floor,
- maximum working height 1720mm,
- 2 hydraulic cylinders,
- solid construction,
- double lock ensuring safety and stability,
- optional 230V power supply,
- CE certificate.

Frequently Asked Questions

What is the biggest advantage of the QJY3.2-1 lift?

The biggest advantage of the QJY3.2-1 lift is the fact that after leaving it, it becomes an integral part of the floor, it completely equates with its level, which allows undisturbed passage of vehicles and workshop equipment through its working space. Ideally suited to narrow and long rooms.

What are the ground requirements for lift installations?

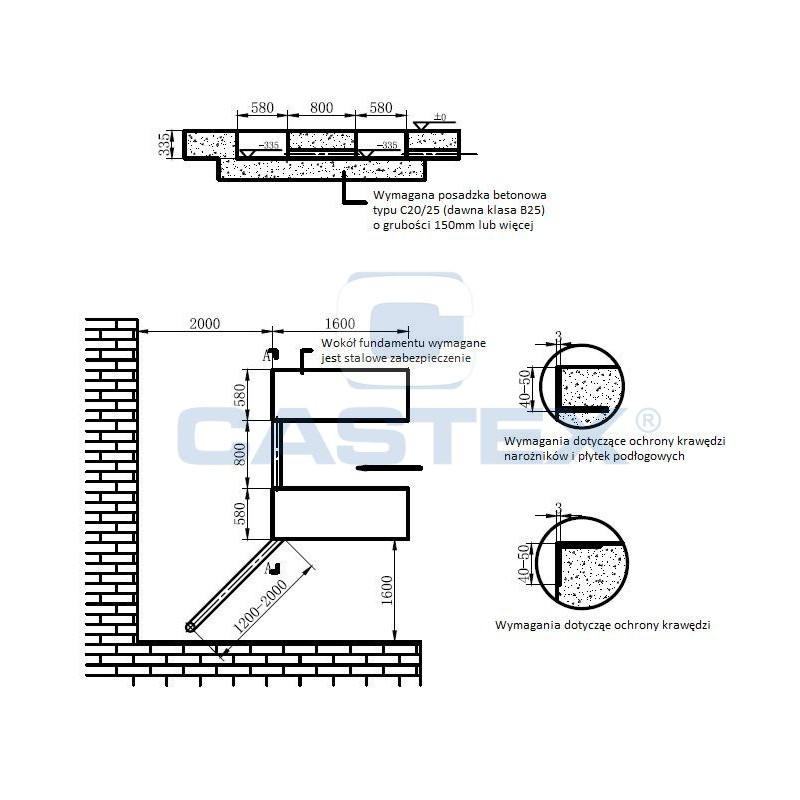

The lift requires a special concrete screed, please contact the seller for details.

Which oil should I use in the lift?

The oil for the lift should be HV / HL 46.
