5T automatic four-post lift for wheel alignment, 4QJY5.0-B

Reference: 4QJY5.0-B

Add to compare

Compare (0)

18 620,85 zł tax incl.18620.85 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Availability: This product is no longer in stock

Details

Adapters boosting

Facilitates work with cars with increased suspension.

Subliminal pad

A precisely made pad that can be adjusted.

400V / 230V plug

It is possible to order 400V or 230V power supply.

Control box

Optimizes the work pace of your workshop.

Adjustable spacing between columns

Thanks to this, the adaptation possibilities of the device have been increased.

Functionality

Capacity	Platforma główna 5000 [kg], platforma pomocnicza 2500 [kg]
Power of motor	2,2 [kW]
Max. lifting height	Platforma główna 1750 [mm], platforma pomocnicza 350 [mm]
Width between columns (internal)	wzdłuż platformy 4599 [mm], w poprzek platformy 2735 [mm]
Width between columns (external)	wzdłuż platformy 5094 [mm], w poprzek platformy 3170 [mm]
Noise level	≤ 70 [dB]
Oil pressure	200 [bar]
Power supply	230/380 [V]
Power unit	elektro-hydrauliczny
Powder coating (RAL)	5002, 1018
Quantity of hydraulic oil	10 [l]
Quality of concrete	B25
Thickness of concrete	300 [mm]
Number of columns	4
Net / Gross weight	1498/1518 [kg]
Working temperature	'-5/+40 [°C]
Guarantee	12
Lock system	poczwórna manualna mechaniczna
Type of hydraulic oil	46
Type of lift	czterokolumnowy, półautomatyczny, przystosowany do geometrii
Height of lift (posts)	2119 [mm]

Product description

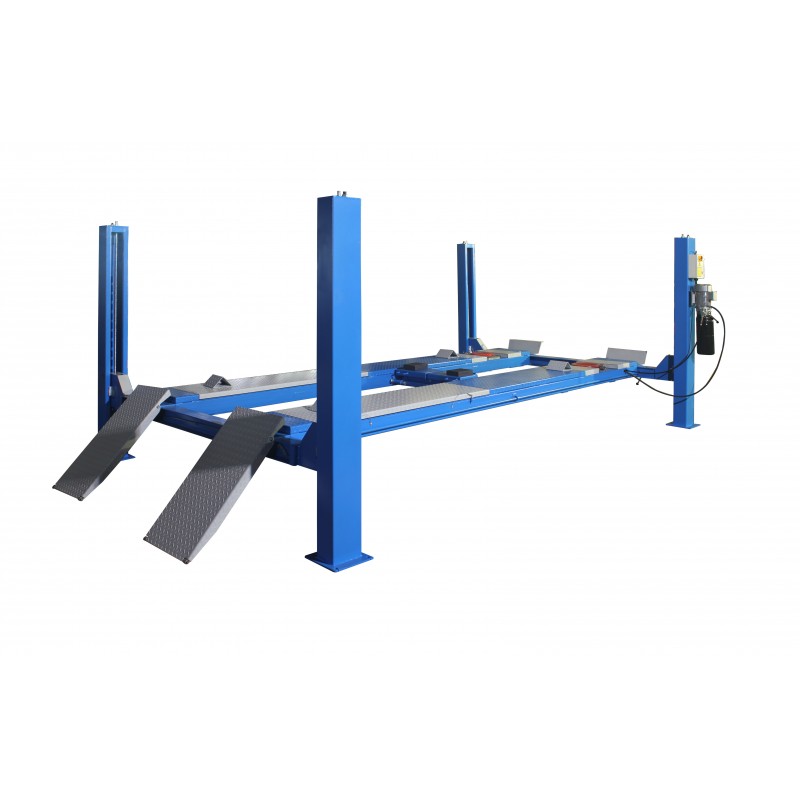

The four-column CASTEX 4QJY5.0-B lifting jack with a lifting capacity of 5000kg is designed to work with passenger and delivery vehicles, the total weight of which does not exceed 5 tons. The construction of a four-column lift ensures the stability of the lifted vehicle unmatched by other types of lifts, which significantly affects the user's work safety.

The fact that the lifted vehicle rests with all wheels on the elevator ramps is invaluable in the case of repairs whose nature forces the vehicle balance to be disturbed and its center of gravity to change, such as during the assembly / disassembly of the drive unit. To increase the universality of the jack and allow work requiring the disassembly of the wheels, the jack is standardly equipped with a hydraulic lifting jack with a lifting capacity of 2500kg, which allows lifting simultaneously the entire axis of the vehicle. The elevator ramps are adapted to support all types of devices for measuring the wheel alignment of vehicles. The ramps are equipped with expansion plates for the rear axle and universal seats for the front axle rotators. The sockets have covers in several sizes to adjust the size of the sockets to the turntable and to completely cover the sockets. The lift is equipped with four mechanical safety locks released centrally. The lift includes a set of mounting anchors. - lifting capacity of 5000kg.

Advantages:

- stable reinforced structure,
- expansion plates for the rear axle,
- universal sockets for turntables for the front axle,
- adapted to handle geometry measurement devices,
- internal mobile hydraulic axle lift with a lifting capacity of 2500kg,
- mounting anchors in the set,
- optional 230V power supply,
- CE certificate.

Curiosity

The assembly has been simplified by pre-installation of most elements already at the production stage, and the lift includes a set of mounting anchors. At the order stage, it is possible to change the power supply of the lift with 400V voltage for 230V. Along with the lift, the customer receives the complete documentation necessary for proper use and maintenance, allowing for reporting the lift from the Office of Technical Inspection.

Frequently Asked Questions

What should you pay attention to when buying a four-column lift?

The purchase of a four-column lift is an important and large investment for the car workshop, that is why every effort should be made, and the device should be as useful and compatible as possible. The hoist fulfilling the above features must be equipped with a hoist lift for easy and safe work with the vehicle suspension components, and its construction must provide the possibility of cooperation with any geometry models of all manufacturers. Only these features allow for the development of the workshop, constantly expanding the range of services and increasing their quality, without forcing the need to change the lift.

What are the requirements for a floor and installation of a four-column lift?

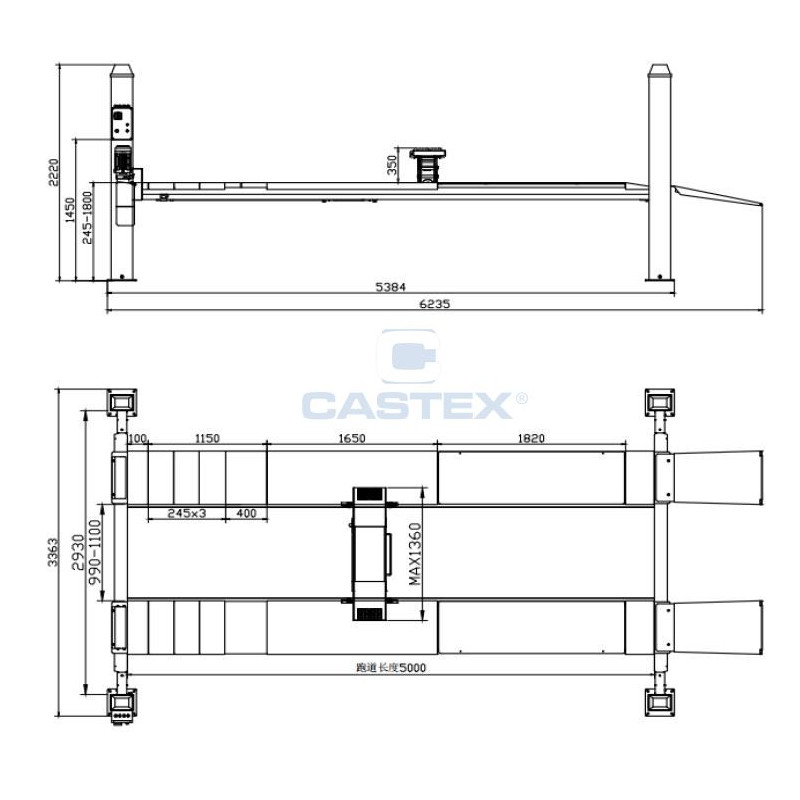

A concrete floor type C20 / 25 (formerly class B25) with a minimum thickness of 200 mm and a 400V / 230V electrical connection are required for the installation of the lift. Detailed information and technical drawing can be found in the download / download section.

Which hydraulic oil should I use?

Use 10 liters of HV / HL 46 hydraulic oil.
