Automatic wheel balancer CASB96AAB

Reference: CASB96AAB

Add to compare

Compare (0)

5 034,76 zł tax incl.5034.76 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Availability: This product is no longer in stock

Functionality

Power of motor	0,2 [kW]
Power supply	230 [V]
Weight	98 netto /120 brutto [kg]
Dimensions	950x750x1150 [mm]
Balancing accuracy	+/- 1 [g]
Max wheel weight	60 [kg]
Balancing speed	200 [obr/min]
Max rim diameter	24 [cal]
Max rim width	20 [cal]
Meansuring time	≤ 8 [s]
Noise level	≤ 70 [dB]

Product description

Automatic wheel balancer CASB96AAB is designed for balancing both steel and aluminum wheels in passenger cars, vans up to 3.5T and motorcycle wheels and all other types of wheels, the weight and dimensions of which do not exceed the maximum parameters included in the device specification. What distinguishes CASB96AAB from the previous models is primarily the laser pointing the place of sticking the weight when balancing the ALU-S system and automatic blocking the wheel at the punching points and sticking the weight. All this allows for comfortable and precise balancing of the wheel. In addition, the machine is equipped with an automatic calibration of unbalance sensors and sensors, standard ALU programs, as well as a program to optimize the tire's position relative to the rim in case of large unbalances. Automatic wheel balancer CASB96AAB has the option of dynamic and static balancing. Reliable and proven design are only additional advantages of this model.

Equipment

The basic equipment of the machine includes:

a set of cones,
compass,
vulcanization pliers,
a quick-locking nut with a sleeve,
36 mm threaded shaft,
calibration weight 100g.

Features

automatic measurement of wheel diameter and width as well as wheel distance from the machine,
self-diagnosis and auto-calibration function,
6 advanced ALU / ALU-S programs,
dynamic and static balancing,
patented intuitive control panel,
plastic cover operating in the START / STOP system,
auxiliary electronic brake in the form of a button on the desktop,

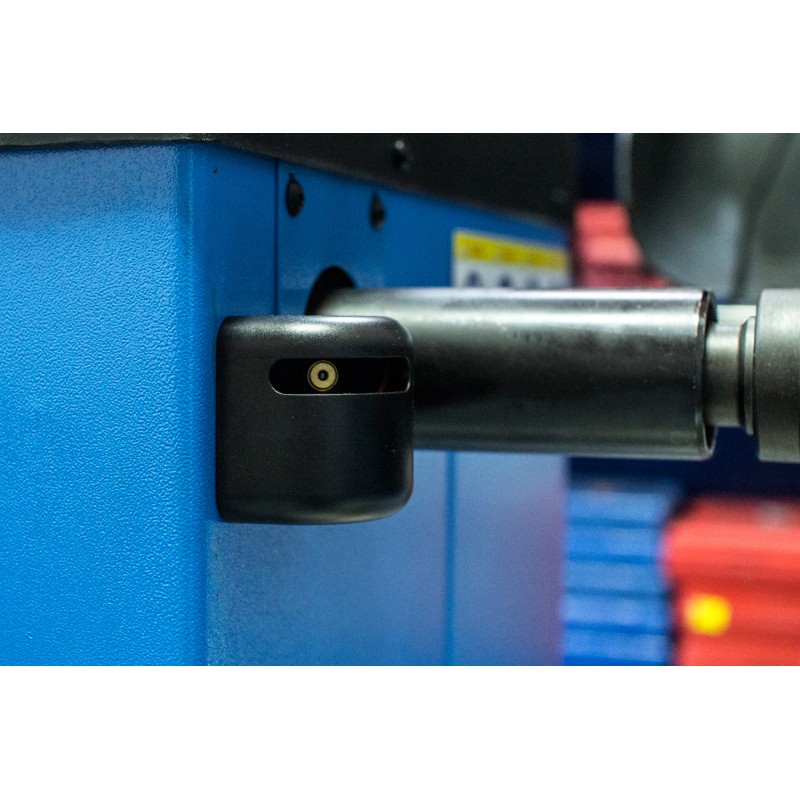

laser guiding the place of sticking the weight,
automatic braking of the wheel at the place of sticking the weight.
