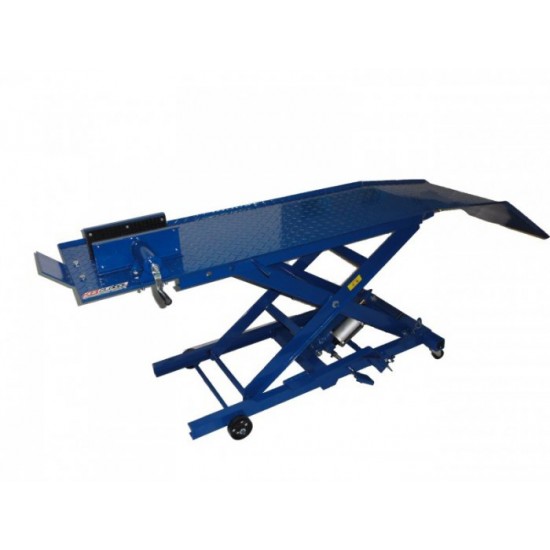

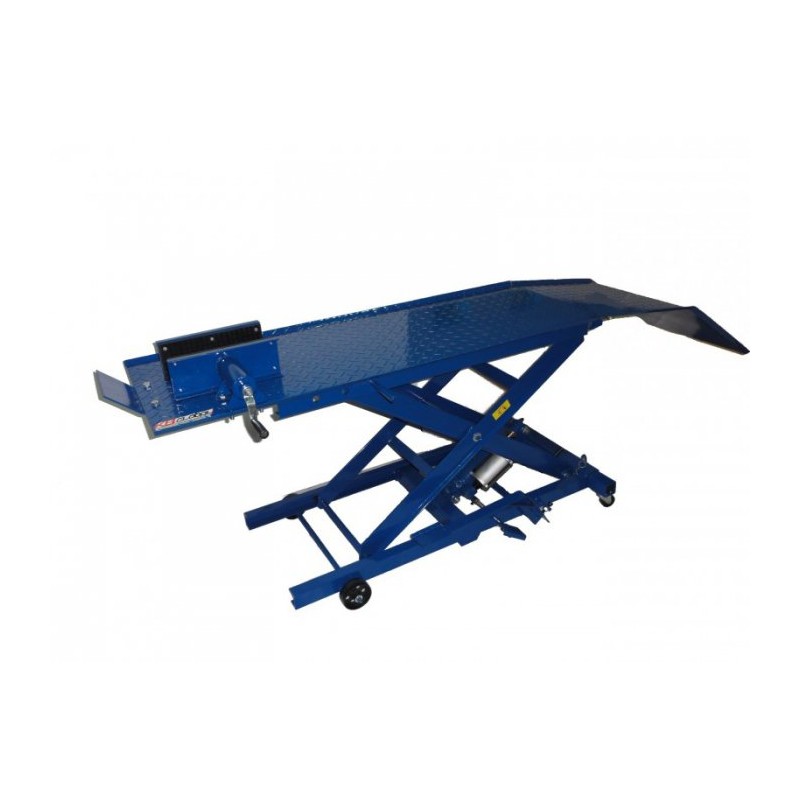

Motorcycle scissor lift platform 0,36T, hydraulic, T61004

Product description

Motorcycle lift 360 kg. The product is available in blue.

T61004A motorcycle lift with scissor lifting mechanism. The vehicle is raised in the range from 210 to 780 mm. Lifting is performed by a hydraulic unit. This ensures that motorcycles weighing up to 360 kg can be lifted. It is operated with foot pedals.
Safe mounting is guaranteed by a crank vise placed at the front (covered with protective rubber) and 4 additional clamps on the sides. It is easy to attach a rope or tape to them, which additionally stabilizes the two-wheeler. The 2 screws at the base allow you to balance the equipment and position it even on uneven surfaces.
The ramp enables quick introduction and then convenient exit of the machine from the platform.
The work platform has useful mounts to stabilize the motorcycle. The base is equipped with small wheels, enabling the lift to be freely moved at the service position.

Technical data:
Capacity 360 kg
Max. lifting height: 780 mm
Table size 1750x550 mm
Jaws with rubber
2 swivel and 2 fixed wheels for steering
Foot lever for raising and lowering
Hydraulic cylinder
Easy disassembly of the ramp (slid on the hinge)
Net weight: 98 kg
Gross weight: 115 kg

Package size: 1510x680x300 mm
