Hydraulic workshop press with pressure gauge T61220

Product description

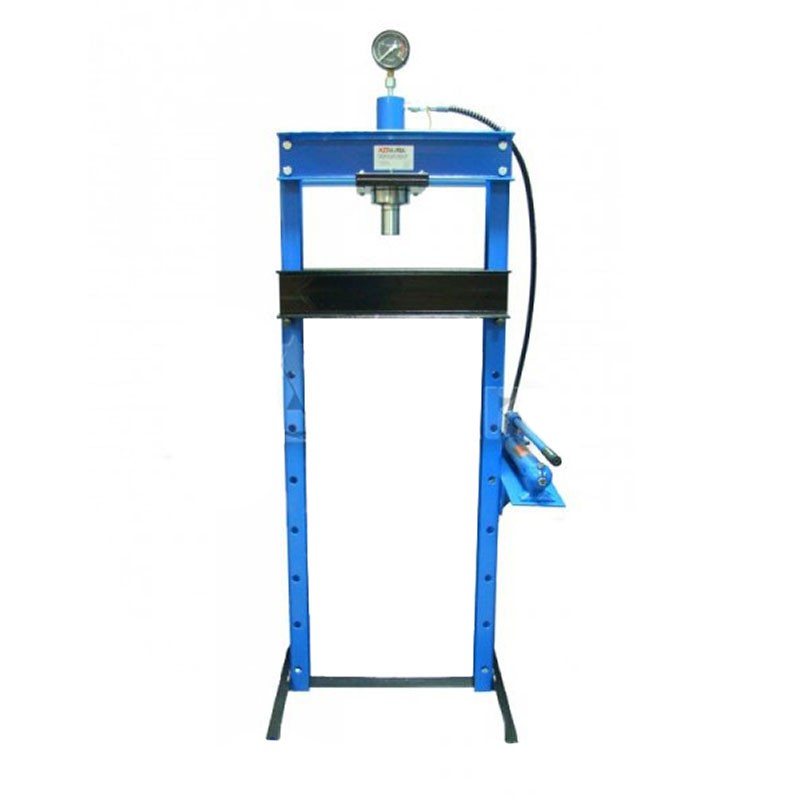

20 t Hydraulic Workshop Press with Pressure Gauge T61220

A robust workshop press with a maximum pressing force of 20 tons, designed for assembly, disassembly, straightening, pressing in and pressing out mechanical components. The hydraulic operating system enables smooth and controlled application of pressure, making the machine suitable for automotive workshops, service centres and facilities performing mechanical work.

Pressing force – 20 tons

The maximum pressing force of 20 tons allows a wide range of assembly and disassembly operations to be performed on mechanical components. The press can be used, among other applications, for working with bearings, bushings, pins, hubs and other parts requiring high and controlled force.

Hydraulic operating system

The press uses a hydraulic drive, allowing gradual and controlled increase of pressing force. This enables the operator to precisely control the pressing process and adapt the operation of the machine to the type of work being performed.

Pressure gauge for force monitoring

The machine is equipped with a glycerine-filled pressure gauge, allowing continuous monitoring of pressure during operation. The glycerine filling dampens pointer vibrations and improves the stability of readings under load.

Practical working dimensions

A frame width of 460 mm provides suitable working space for different mechanical components, while the 150 mm piston stroke enables a wide range of typical workshop operations.

Stable construction

The machine's construction, with a net weight of 92 kg, provides a stable base during workshop operations. At the same time, its relatively compact dimensions make it easier to position the press in a workshop or service area.

Applications

The T61220 press can be used, among other applications, for:

• pressing bearings in and out,

• installing and removing bushings,

• servicing pins and hubs,

• straightening metal components,

• assembly and disassembly work,

• repair operations requiring controlled pressing force,

• other operations performed using hydraulic force.

Technical data

• Maximum pressing force: 20 t

• Piston stroke: 150 mm

• Frame width: 460 mm

• Dimensions: 1600 × 260 × 280 mm

• Net / gross weight: 92 / 98 kg

• Pressure gauge: glycerine-filled

• Drive type: hydraulic

The T61220 is a practical hydraulic press for everyday workshop applications, combining high pressing force, straightforward operation and convenient monitoring of operating parameters.
