Hydraulic workshop press with pressure gauge T61230

Product description

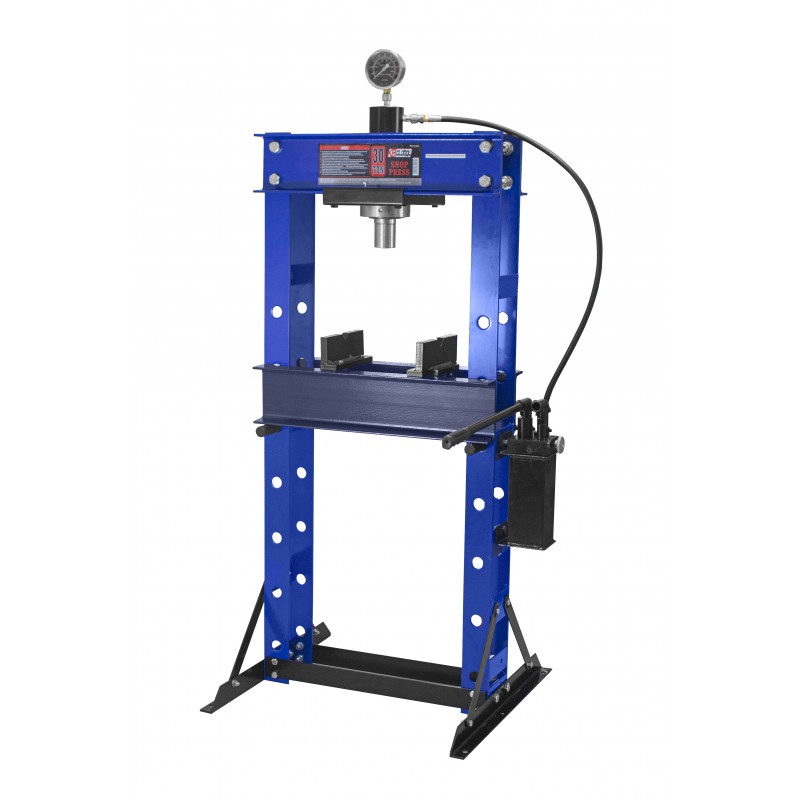

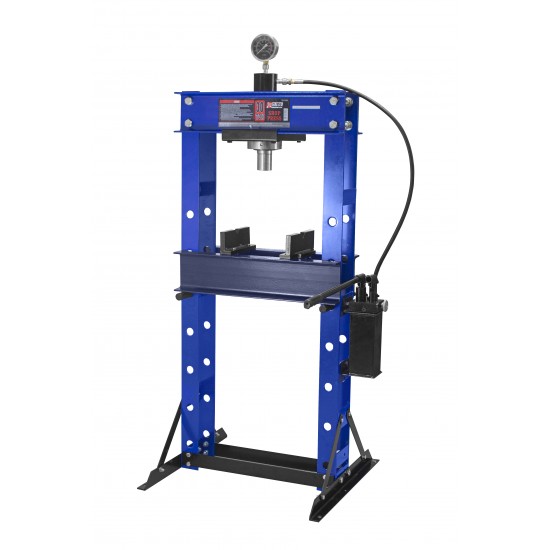

30 t Hydraulic Workshop Press with Pressure Gauge T61230

A robust workshop press with a maximum pressing force of 30 tons, designed for assembly, disassembly, straightening, pressing in and pressing out components that require high and controlled force. The hydraulic operating system enables precise control of the pressing process, making the machine suitable for automotive workshops, service centres and facilities performing mechanical work.

Pressing force – 30 tons

The maximum pressing force of 30 tons allows a wide range of assembly and disassembly operations to be performed on mechanical components. The press can be used, among other applications, for servicing bearings, bushings, pins, hubs and other parts requiring high force.

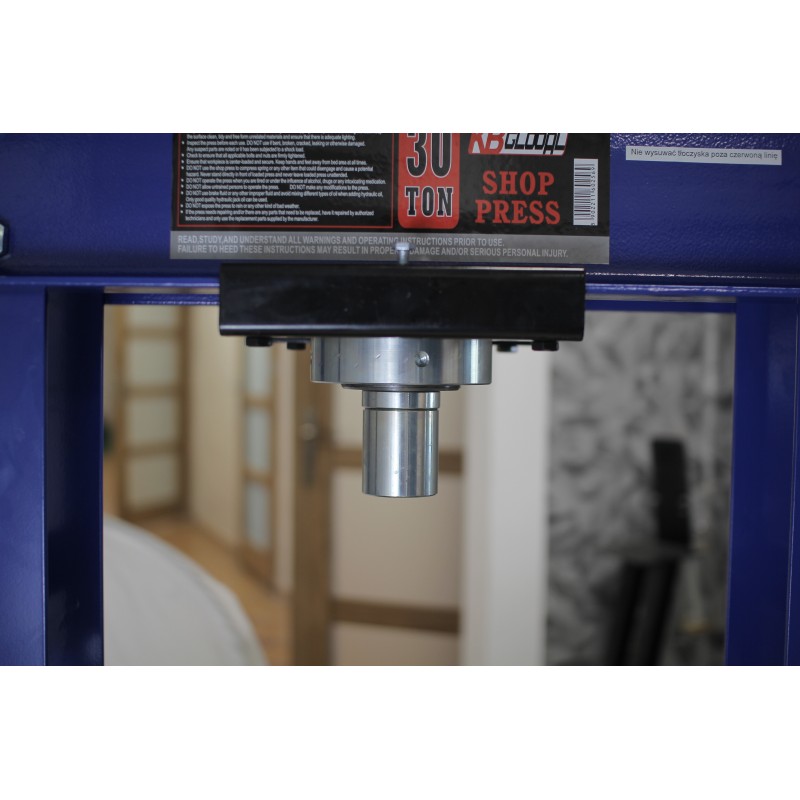

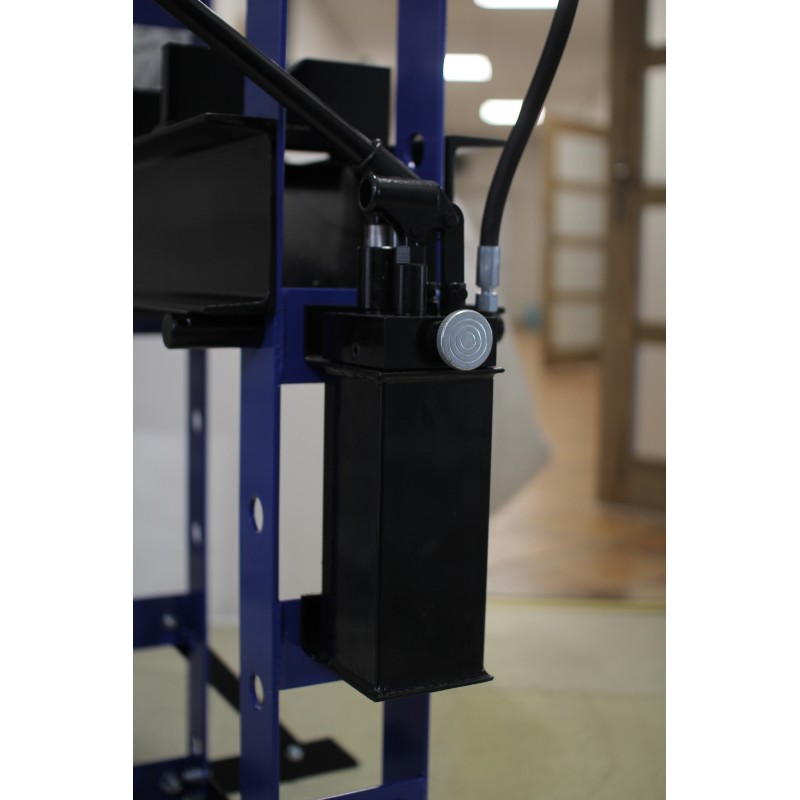

Hydraulic operating system

The press uses a hydraulic drive, allowing smooth and controlled increase of pressing force. This enables the operator to adjust the working process to the type of component and operation being performed.

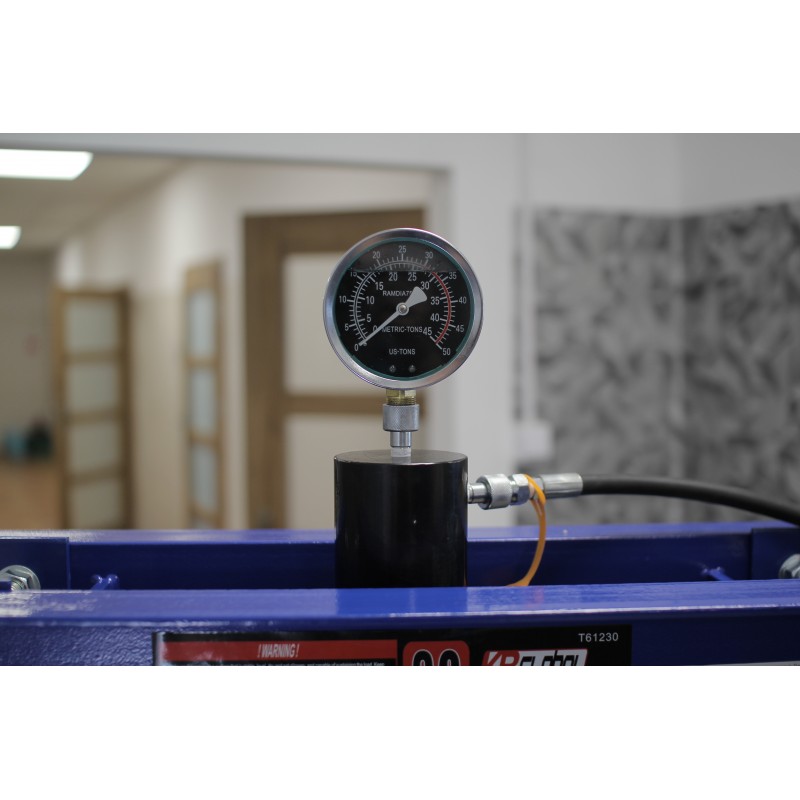

Pressure gauge for force monitoring

The machine is equipped with a clear glycerine-filled pressure gauge, allowing continuous monitoring of pressure during operation. The glycerine filling dampens pointer vibrations and improves the stability of readings under load.

Wide working range

A working range of 130–820 mm and a piston stroke of 150 mm allow the machine to accommodate components of different dimensions. This makes the press suitable for a wide range of servicing, assembly and repair operations.

Stable construction

The machine's construction, with a net weight of 150 kg, provides a stable base during workshop operations. The press is designed as a stationary machine intended for regular use.

Applications

The T61230 press can be used, among other applications, for:

• pressing bearings in and out,

• installing and removing bushings,

• servicing pins and hubs,

• straightening metal components,

• assembly and disassembly work,

• other operations requiring controlled hydraulic pressure.

Technical data

• Maximum pressing force: 30 t

• Piston stroke: 150 mm

• Working range: 130–820 mm

• Dimensions: 1630 × 360 × 260 mm

• Net / gross weight: 150 / 160 kg

• Pressure gauge: glycerine-filled

• Drive type: hydraulic

• Colour: blue

The T61230 is a robust hydraulic press designed for workshops that require high pressing force, a wide working range and convenient monitoring of operating parameters.
