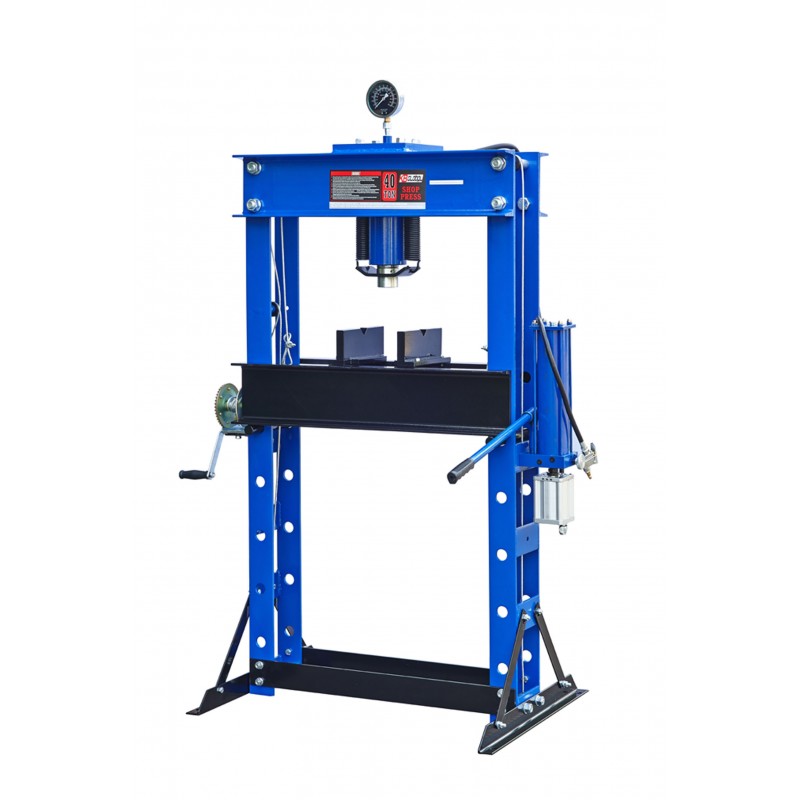

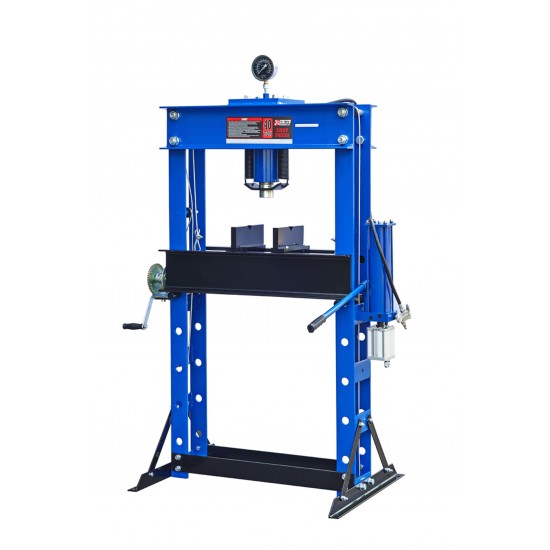

Hydraulic-pneumatic workshop press of 40 tons with a manometer T61240P

Product description

40 t Hydraulic-Pneumatic Workshop Press with Pressure Gauge T61240P

A robust 40-ton workshop press, designed for assembly, disassembly, straightening, pressing in and pressing out components that require high force. The hydraulic-pneumatic design facilitates repetitive work and is suitable for professional automotive workshops, service centres and industrial facilities.

High pressing force – 40 tons

The maximum pressing force of 40 tons makes it possible to work with components whose assembly or disassembly requires considerable force. The press can be used, among other applications, for servicing bearings, bushings, pins, hubs and other mechanical components.

Hydraulic-pneumatic drive

The hydraulic-pneumatic system reduces the physical effort required from the operator during tasks involving frequent press operation. This solution is particularly useful in workshops where the machine is used on a regular basis.

Pressure gauge for force monitoring

The press is equipped with a clear glycerine-filled pressure gauge, allowing continuous monitoring of pressure during operation. The glycerine filling dampens pointer vibrations and helps ensure stable and easy-to-read indications under load.

Large working range

A maximum working range of 885 mm and a piston stroke of 235 mm allow the machine to be adapted to components of different dimensions. This makes the press suitable for a wide range of workshop applications.

Stable construction

The robust construction, with a net weight of 220 kg, provides suitable stability during work under high loads. The press is designed as a stationary machine intended for intensive workshop use.

Applications

The T61240P press can be used, among other applications, for:

• pressing bearings in and out,

• installing and removing bushings,

• servicing pins and hubs,

• straightening metal components,

• assembly and disassembly work,

• other operations requiring controlled hydraulic pressure.

Technical data

• Maximum pressing force: 40 t

• Piston stroke: 235 mm

• Maximum working range: 885 mm

• Dimensions: 1850 × 950 × 430 mm

• Net / gross weight: 220 / 250 kg

• Pressure gauge: glycerine-filled

• Drive type: hydraulic-pneumatic

• Colour: blue

The T61240P is a practical solution for workshops that require high pressing force, a wide working range and convenient monitoring of operating parameters.
