Pneumohydraulic press 50T with pressure gauge T61250Pb

Product description

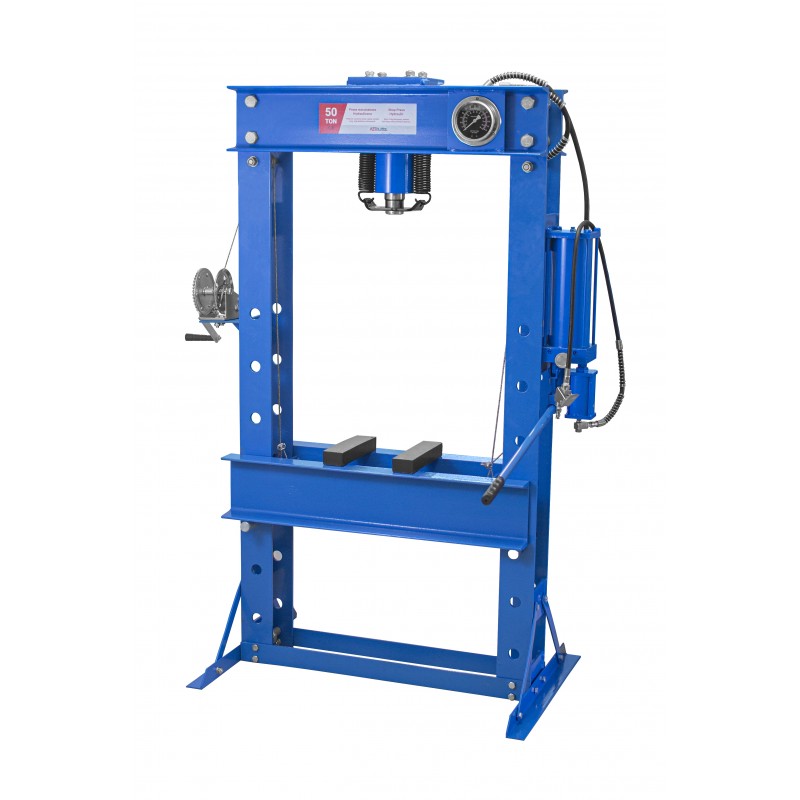

Pneumohydraulic press 50T with pressure gauge T61250Pb

Powerful pneumohydraulic press KB Global T61250Hb of floor type with a maximum force of 50 tons. This equipment is for professional use, which is widely used in car services, workshops, service stations during repair and installation work and maintenance of various types of cars and motor vehicles. With the help of this press, operations on pressing, extrusion, bending and straightening of parts of various configurations are performed.

This model of the floor press has a sturdy, stable construction and is equipped with a pressure gauge. The press is easy to use, reliable and durable.

Technical data:

• Pressure of 50 tons
• height with manometer 1730 mm
• Working range: 0-1010 mm (the total range from the upper part of the folded piston to the working shelf fully lowered)
• Inside working width 685 mm (measured between the inside of the post)
• Punch diameter (working piston rod) 49 mm
• stroke of the piston - 175 mm
• glycerin manometer graduated in tonnes

External dimensions:

• Width 1135 mm
• Height 1730 mm
• Net / Gross weight: 235 / 265 kg
