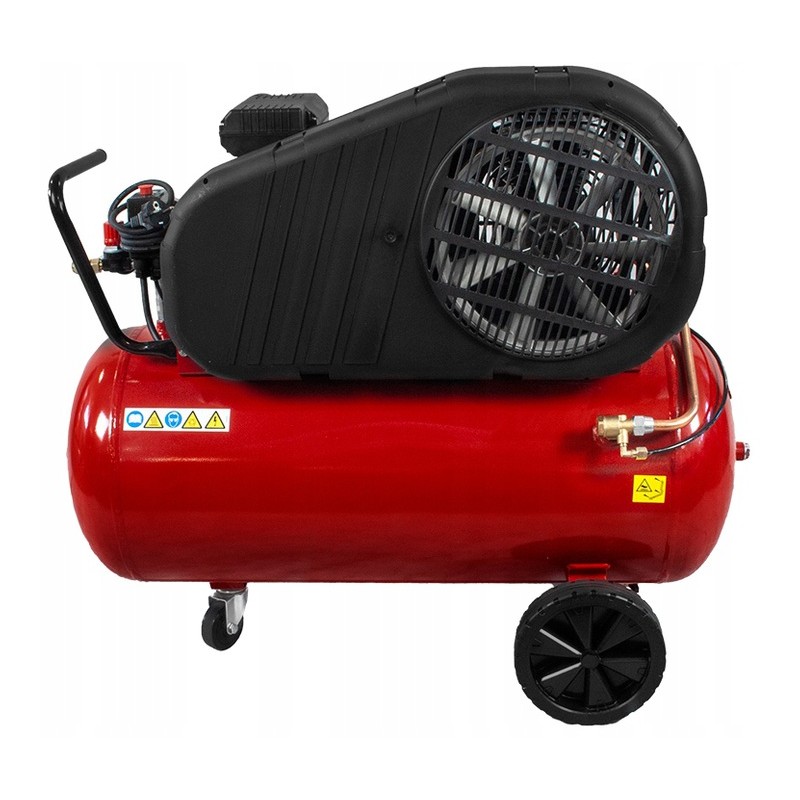

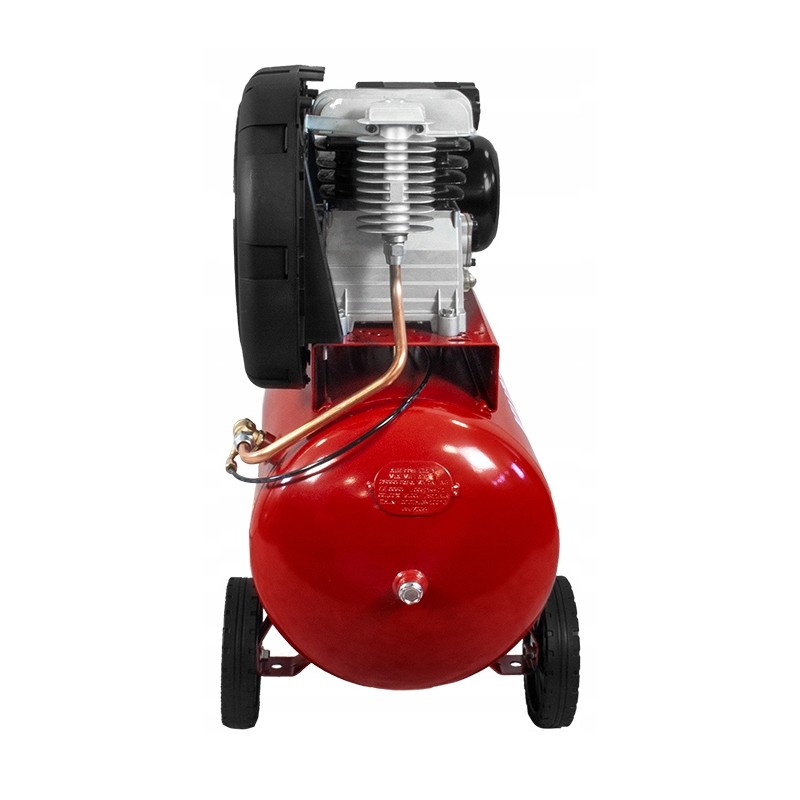

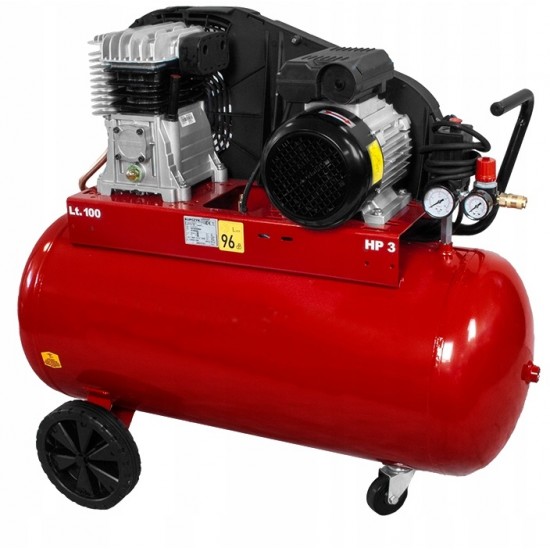

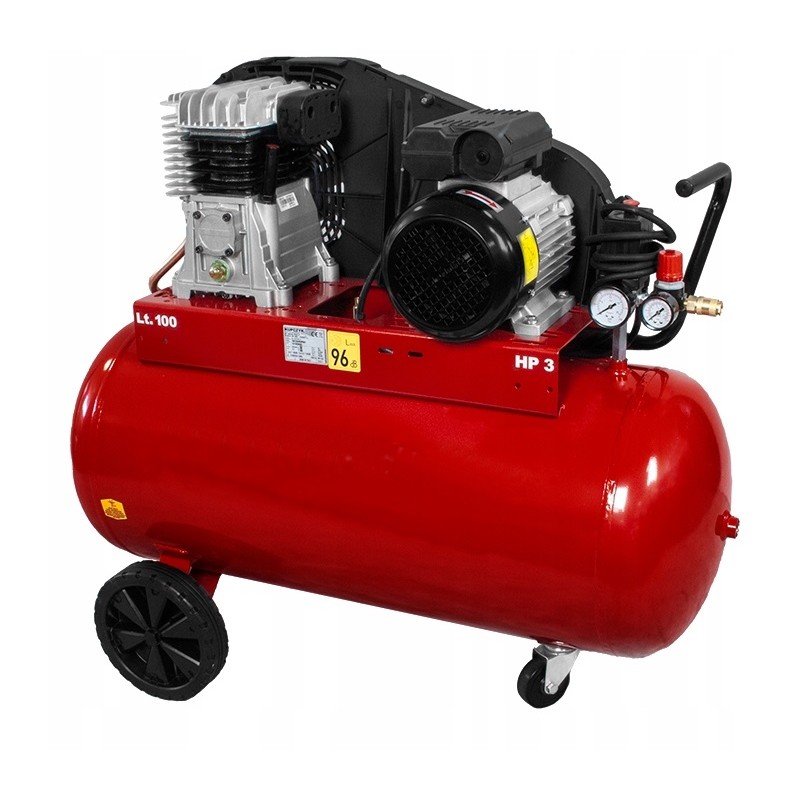

Reciprocating compressor KK 420/100M

Product Description

Are you looking for a solid compressor of European manufacture ? You do not want to have problems with failures of cheap fakes ? Or maybe you want to equip your workshop or garage with a professional compressor ?

You've come to the right place !!! Piston compressors of the Polish brand are a guarantee of quality and unreliability. The presented model is perfect for use in a small workshop and a home garage. Professionals and do-it-yourselfers can work with it.

NOTE: Delivery time up to 5 working days!

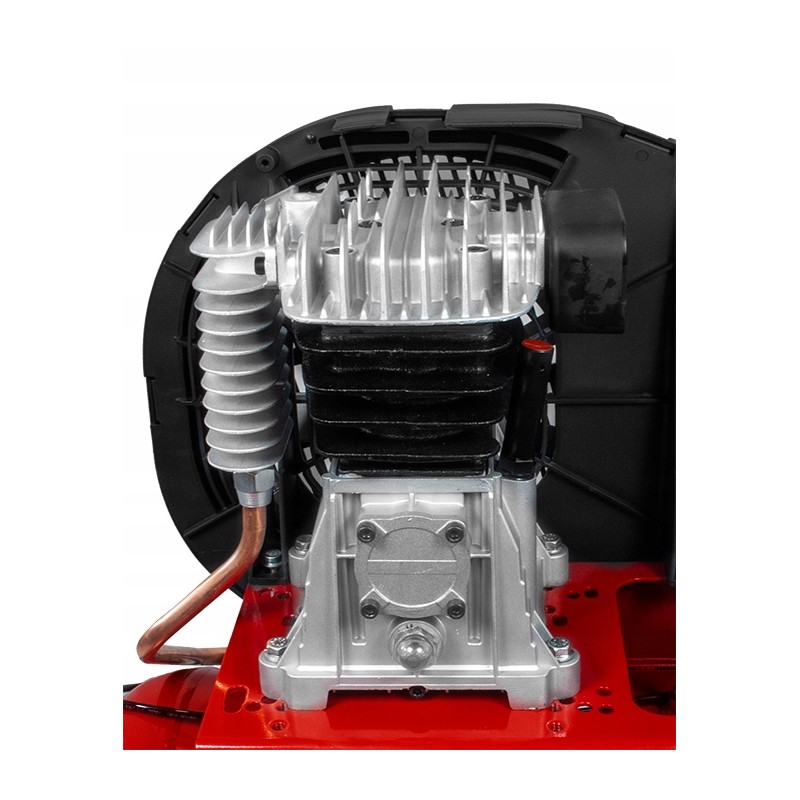

Two-cylinder oil-lubricated piston compressor with one compression ratio equipped with:

cast iron cylinder
aluminum alloy pistons
stainless steel valves
air cooler
pulley for optimum cooling of the compressor
slow-speed pump B2800B has been installed on ABAC compressors in the past
provides longer service life 1570 rpm
oil control indicator

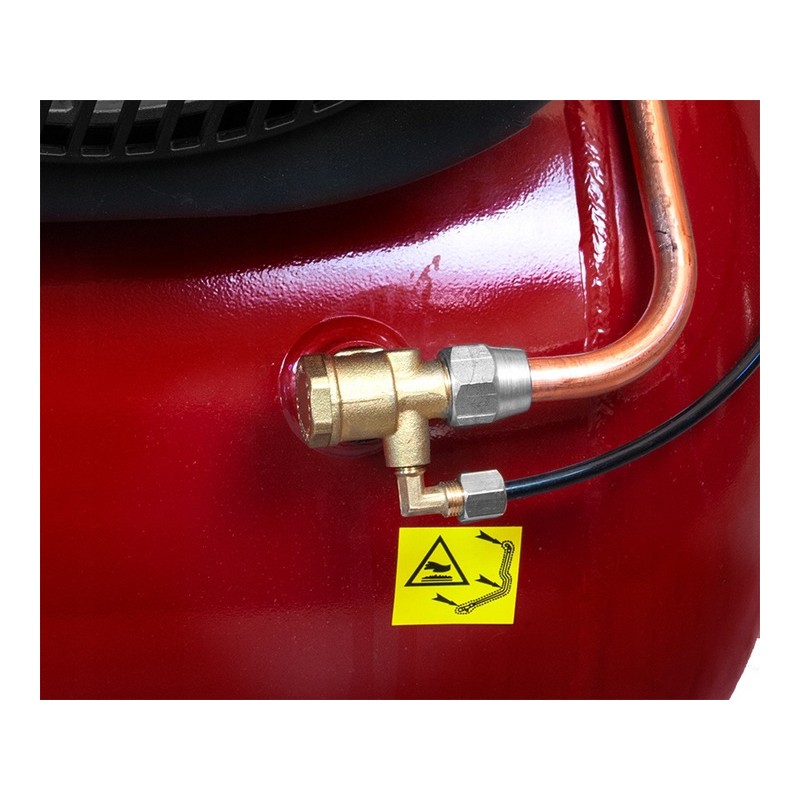

check valve

Technical Parameters:

Power supply - 230 V
Tank capacity - 100 liters
Pump type - B-2800 B
Compressor speed - 1570 rpm
Number of pistons - 2
Number of compression stages - 1
Noise level - 96 db
Theoretical capacity - 420 l/min (25.2 m3/h)
Effective capacity - 245 l/min (14.7 m3/h)
Maximum pressure - 10 Bar

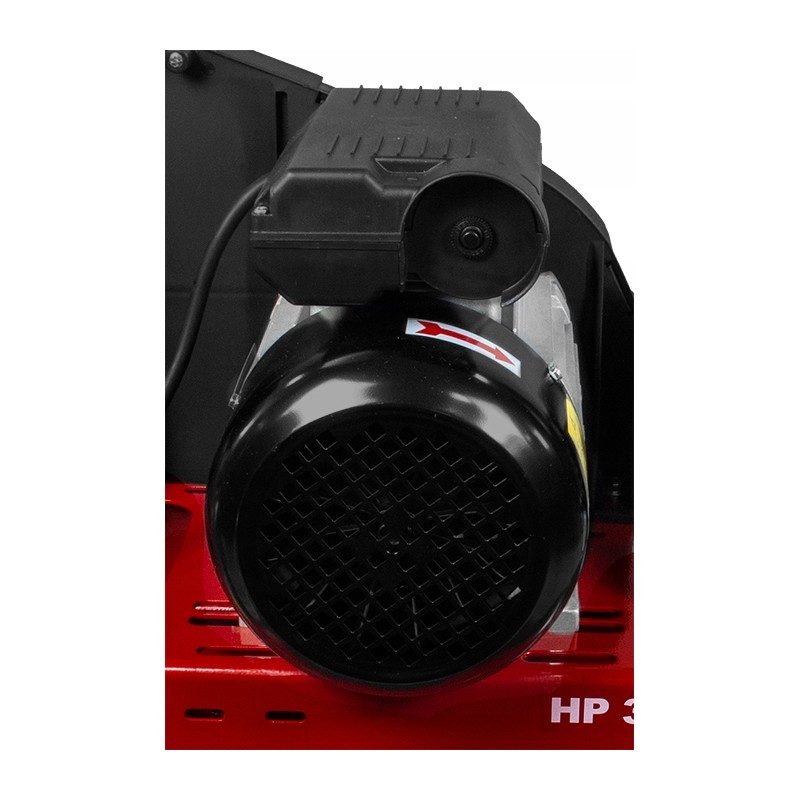

Motor - 2.2 kW (3.0 hp)
Weight: 66 kg
Dimensions: 1030x440x850

Tank 100 liters powder coated and protected against corrosion equipped with:

Condensate drain valve from the tank

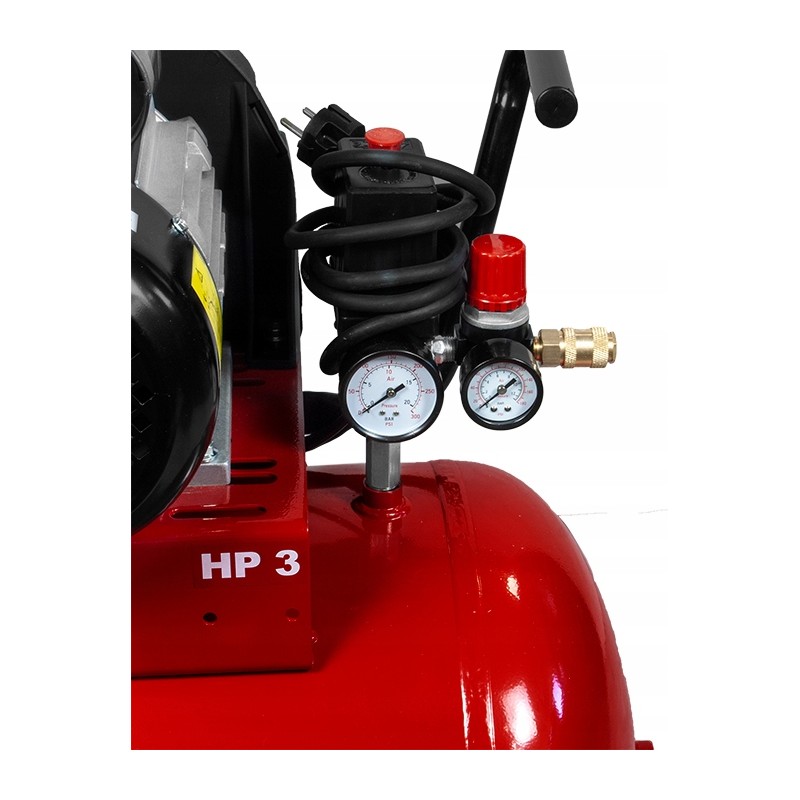

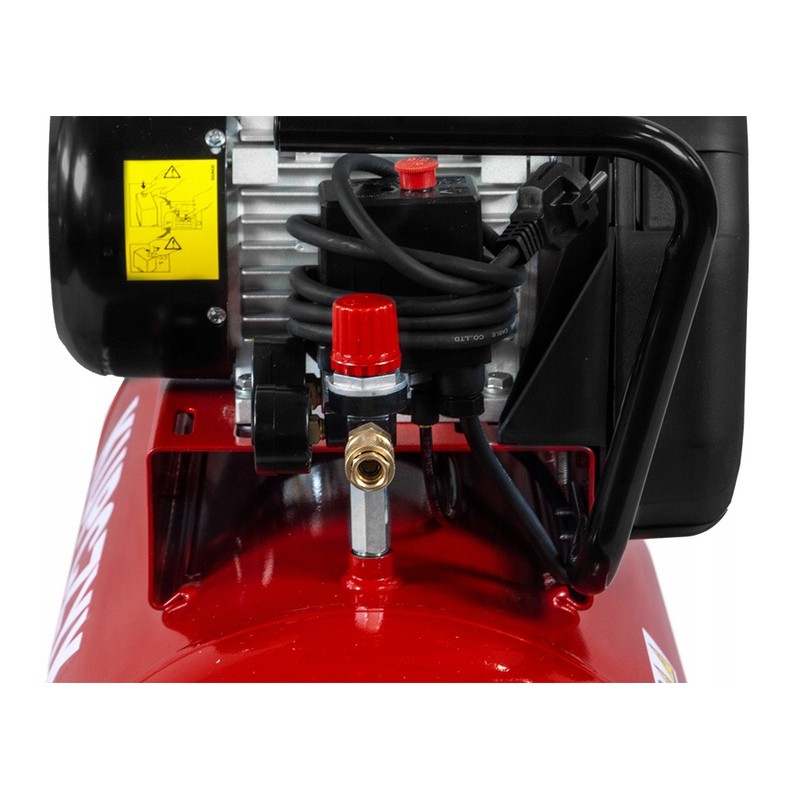

Pressure regulator with a pressure gauge with a quick coupler for setting the pressure "at the outlet"
Additional outlet from the tank ended
