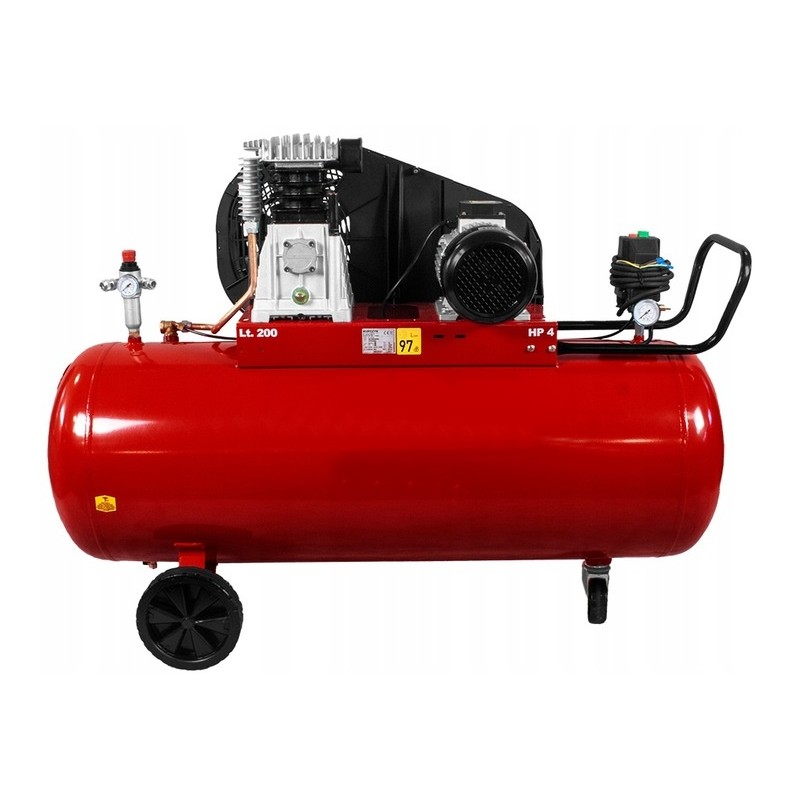

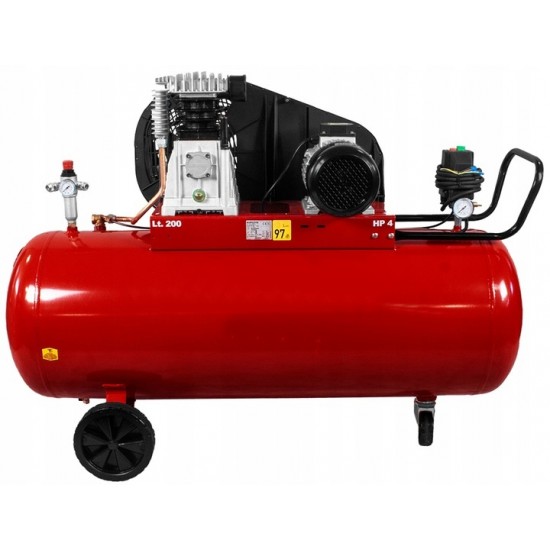

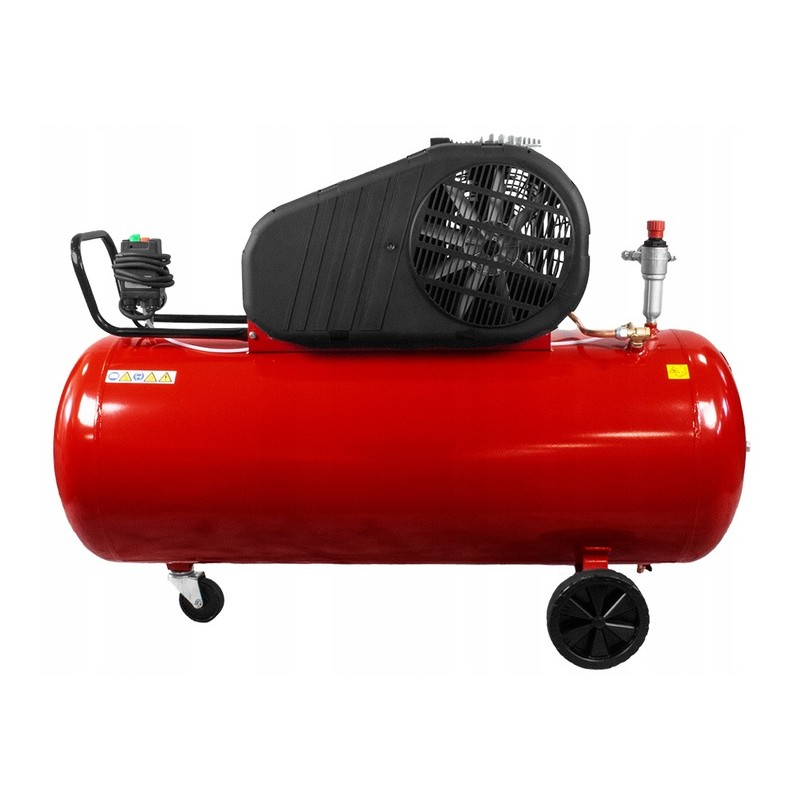

PISTON COMPRESSOR 200L, 400V KK 530/200

Reference: KK 530/200

Add to compare

Compare (0)

7 887,25 zł tax incl.7887.25 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Availability: This product is no longer in stock

Product desciption

Polish piston compressors are a guarantee of quality and unreliability. Our 20 years of experience in selling compressors allows us to create models that have the best value for money. The presented model is perfect for use in a small workshop and a home garage. Professionals and do-it-yourselfers can work with it.

NOTE: Delivery time up to 5 working days!

Technical parameters:

Power supply - 400 V
Tank capacity - 200 liters
Pump type - B-3800 B
Compressor speed - 1400 rpm
Number of pistons - 2
Number of compression stages - 1
Noise level - 97 dB
Theoretical capacity - 530 l/min (31.8 m3/h)
Effective capacity - 405 l/min (24.3 m3/h)
Maximum pressure - 10 Bar

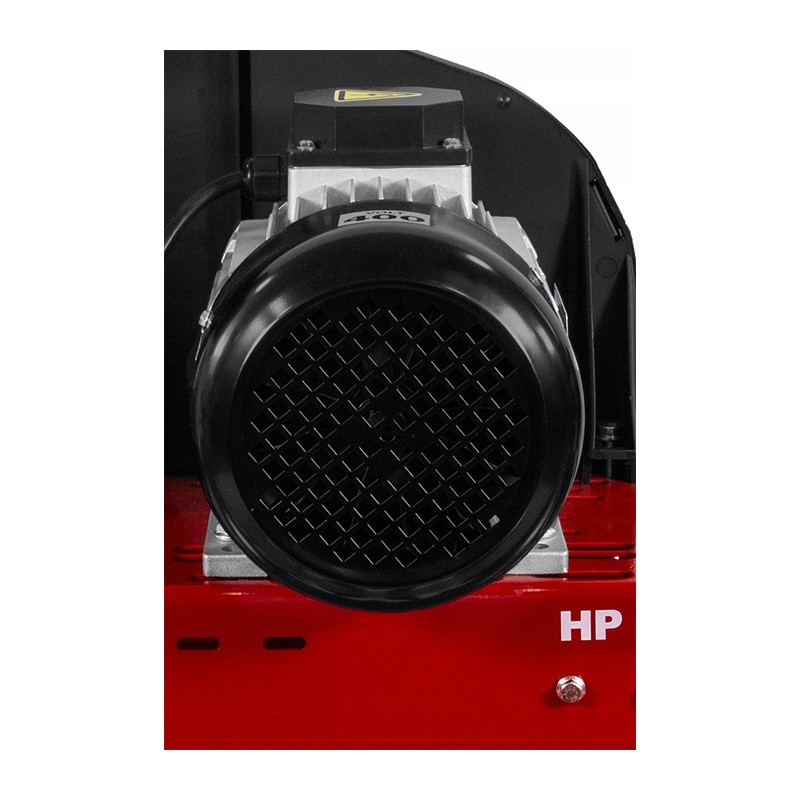

Motor - 3.0 kW (4.0 hp)
Weight: 110 kg
Dimensions: 1435x475x1125

Documents include:

Declaration of conformity,
Certificate for the tank with technical drawing
Certificate for the safety valve.
Operating instructions in Polish language.

Remember!

When you buy a device on this auction you will receive it from a company with 20 years of tradition and experience in selling compressors.

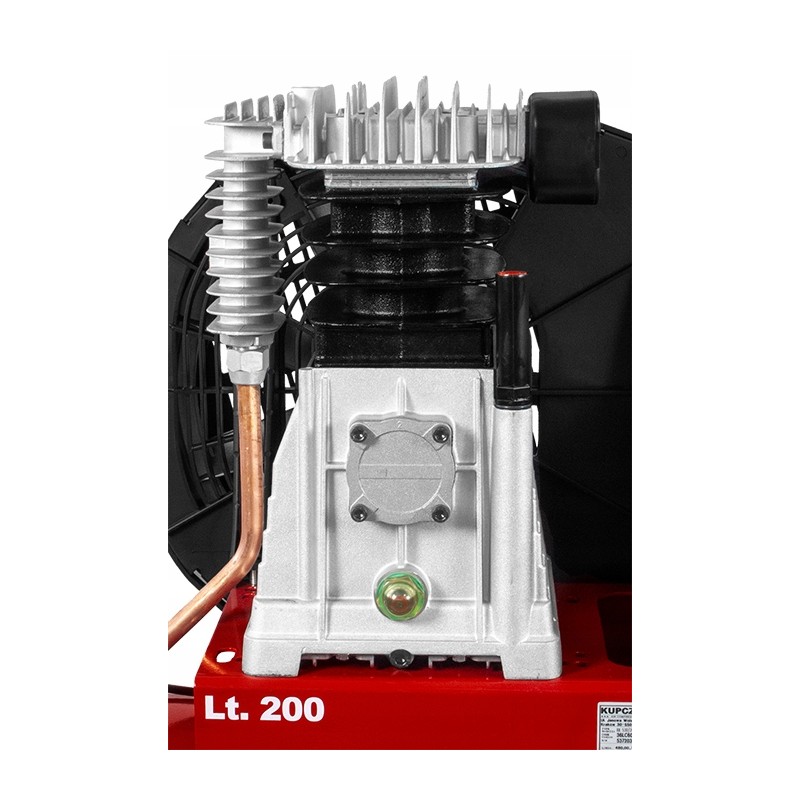

Two-cylinder oil-lubricated piston compressor with one compression ratio equipped with:

cast iron cylinder
aluminum alloy pistons
stainless steel valves
air cooler
pulley for optimum cooling of the compressor
slow-speed pump B3800B has been installed on ABAC compressors in the past
provides longer life 1400 rpm
oil control indicator

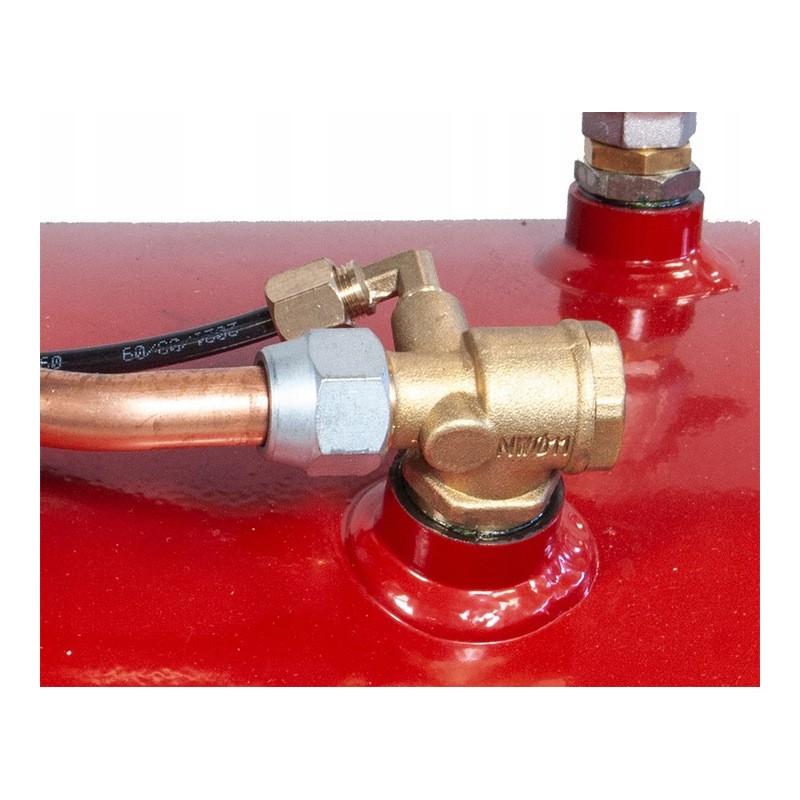

check valve

The compressor has:

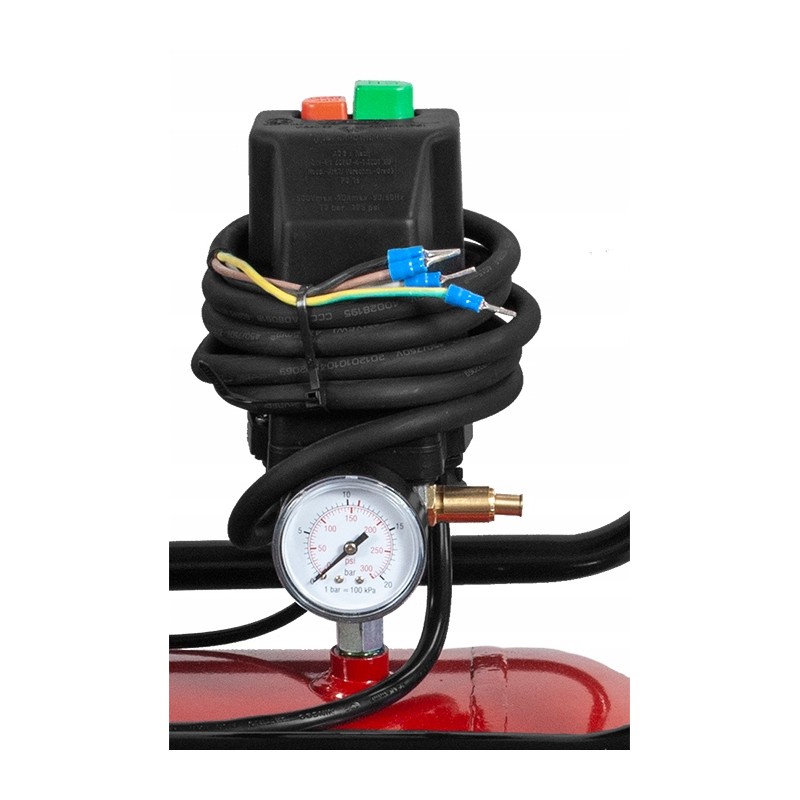

Pressure switch (pressure switch) with relief valve
Thermal protection to prevent overloading
Safety valve
Additional pressure gauge (clock) indicating the current pressure in the tank

Tank 200 liters powder coated and protected against corrosion equipped with:

Condensate drain valve from the tank

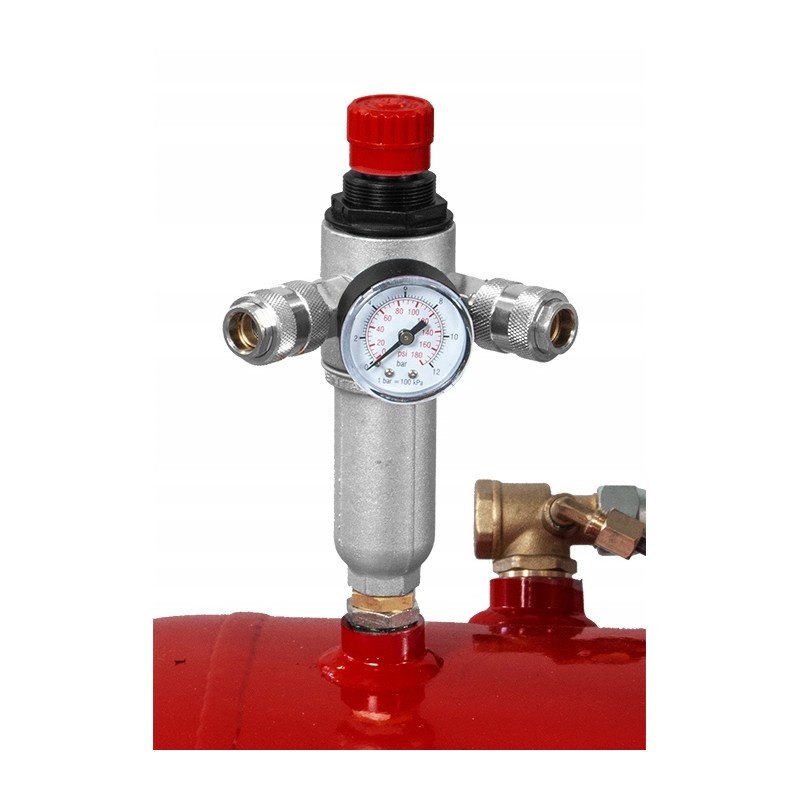

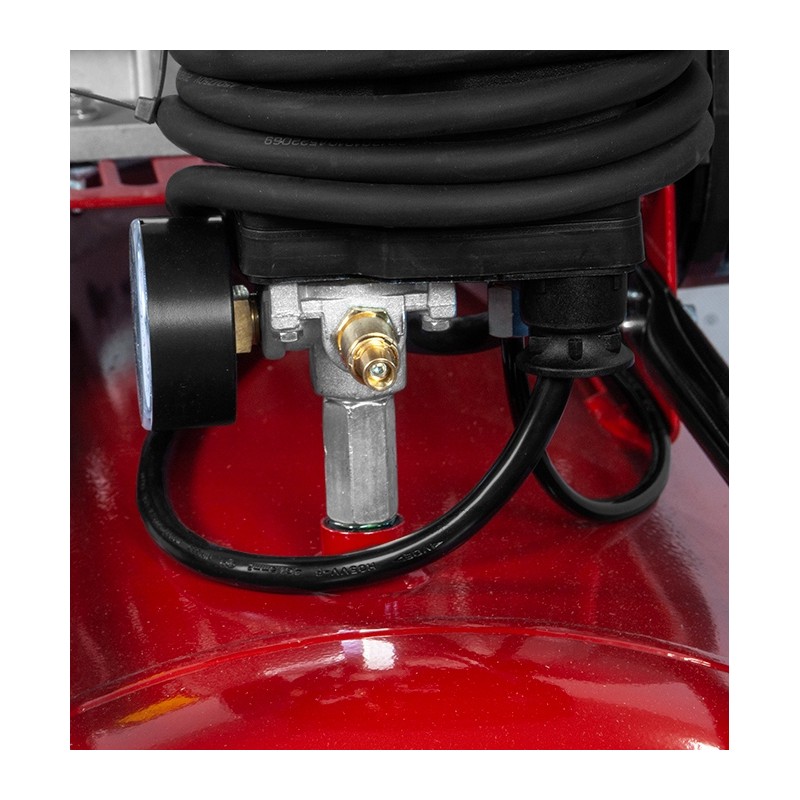

Vertical pressure regulator with a pressure gauge with two sockets for setting the pressure "at the outlet".
Additional third outlet from the tank ended with a quick-connector socket, used for example for the connection of compressed air system

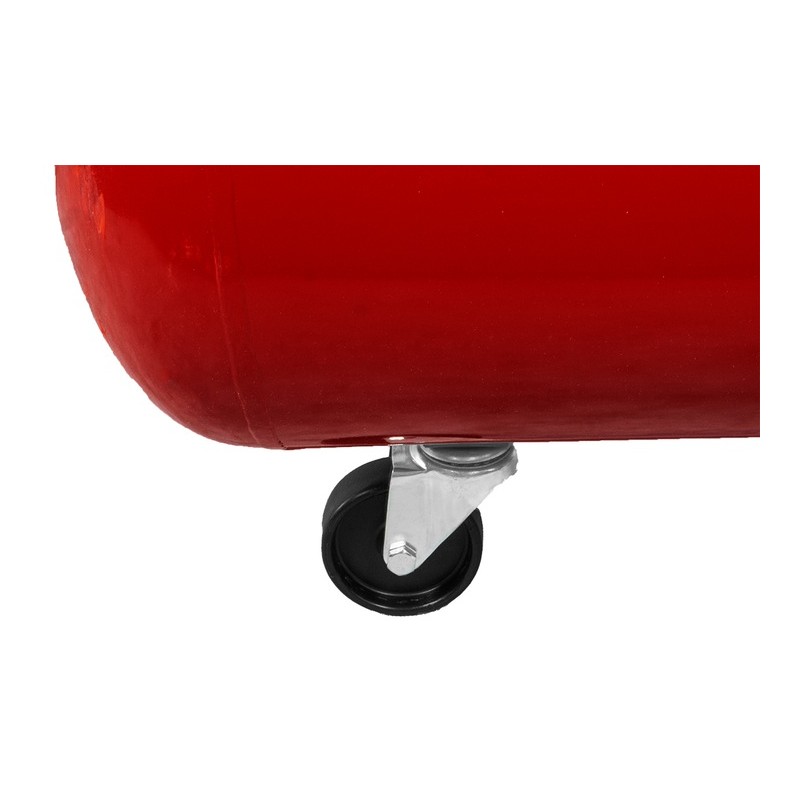

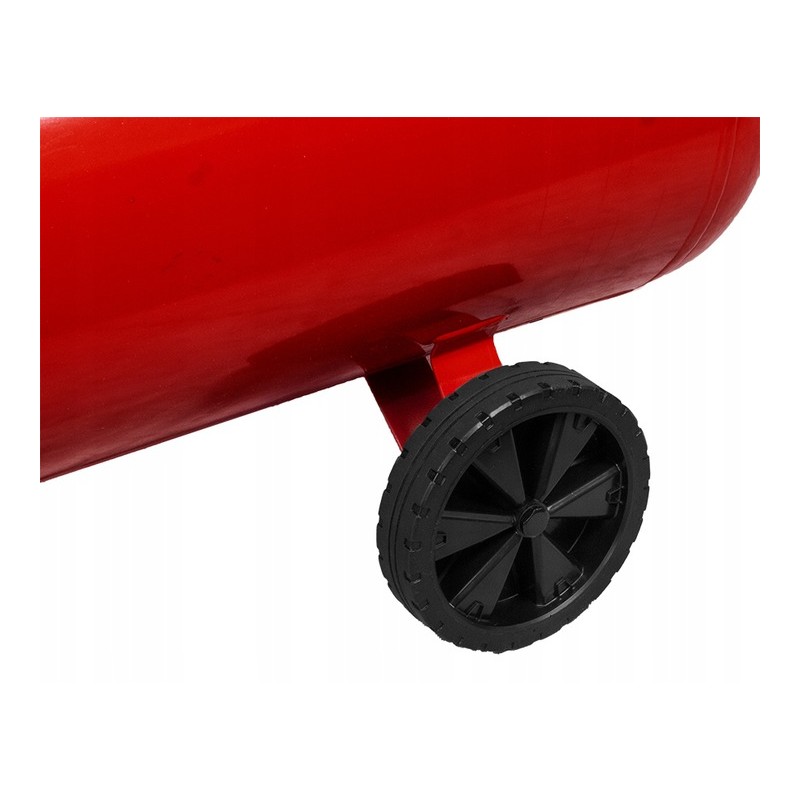

Durable rubberized casters to improve the mobility of the compressor
The compressor is equipped with pulley housing made of high-quality plastic. Such a solution ensures better air flow, increasing the cooling of the compressor.
