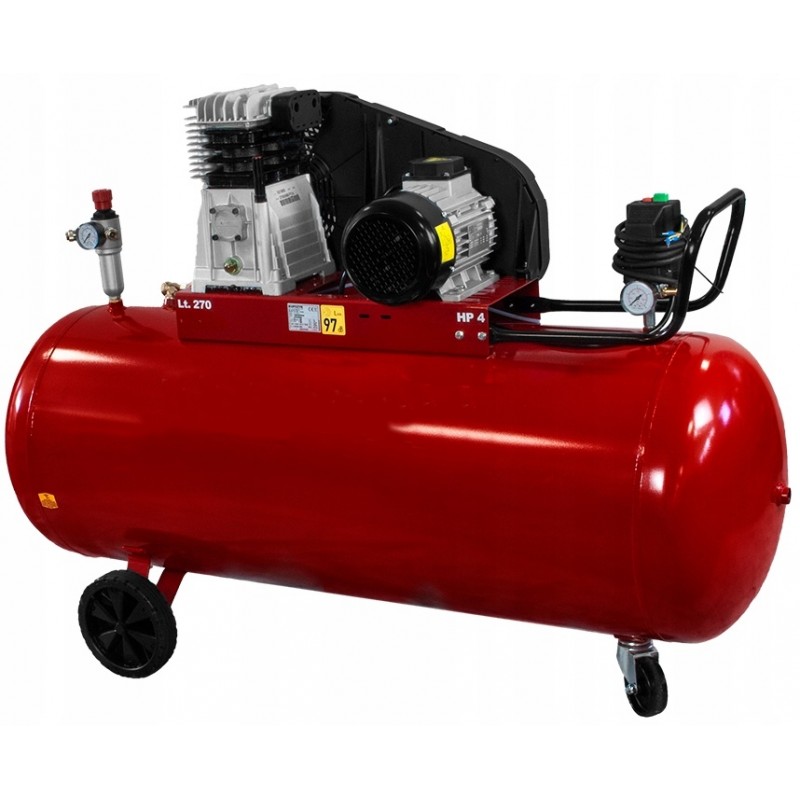

PISTON COMPRESSOR 270L, 400V KK 530/270

Reference: KK 530/270

Add to compare

Compare (0)

8 727,47 zł tax incl.8727.47 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Availability: This product is no longer in stock

Product Description

Piston compressors of the Polish brand are a guarantee of quality and unreliability. Our 20 years of experience in selling compressors allows us to create models that are characterized by the best value for money. The presented model is perfect for work in a small workshop and a home garage. Professionals and do-it-yourselfers can work with it.

Compressor of EUROPEAN production !!!

NOTE: Delivery time up to 5 working days!

Technical Parameters:

Power supply - 400 V
Tank capacity - 270 liters
Pump type - B-3800 B
Compressor speed - 1400 rpm
Number of pistons - 2
Number of compression stages - 1
Noise level - 97 dB
Theoretical capacity - 530 l/min (31.8 m3/h)
Effective capacity - 403 l/min (24.18 m3/h)
Maximum pressure - 10 Bar

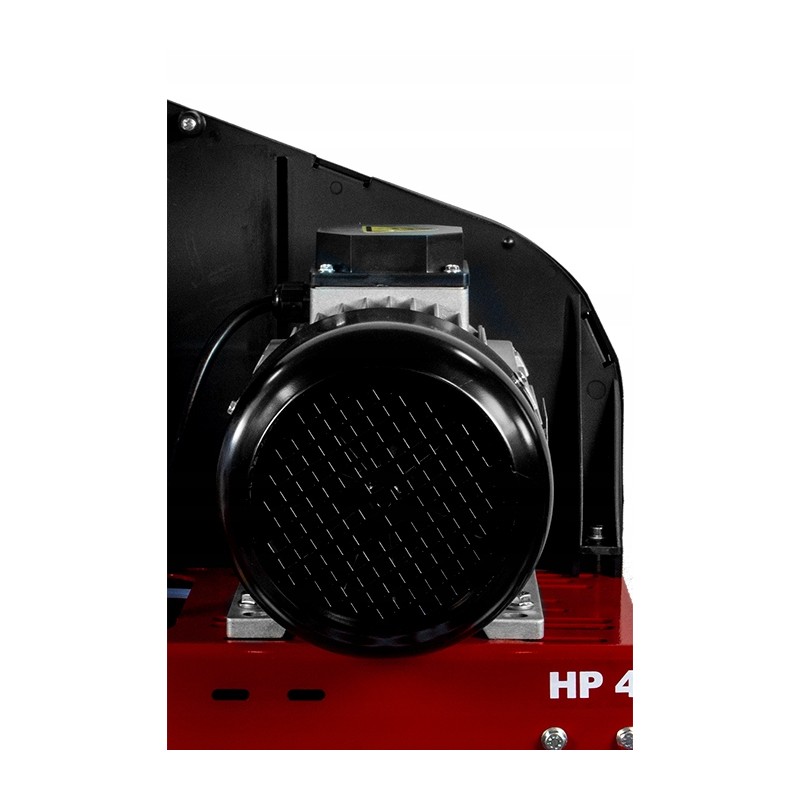

Motor - 3.0 kW (4.0 hp)
Weight: 132 kg
Dimensions: 1640x560x1190

Buy our compressor and with it you will receive a set of documents that will allow you to register the compressor with the Office of Technical Inspection. Registration of compressors with the Office of Technical Inspection is mandatory.

The documents include:

Declaration of conformity,
Certificate for the tank along with a technical drawing
Certificate for the safety valve.
Operating instructions in Polish.

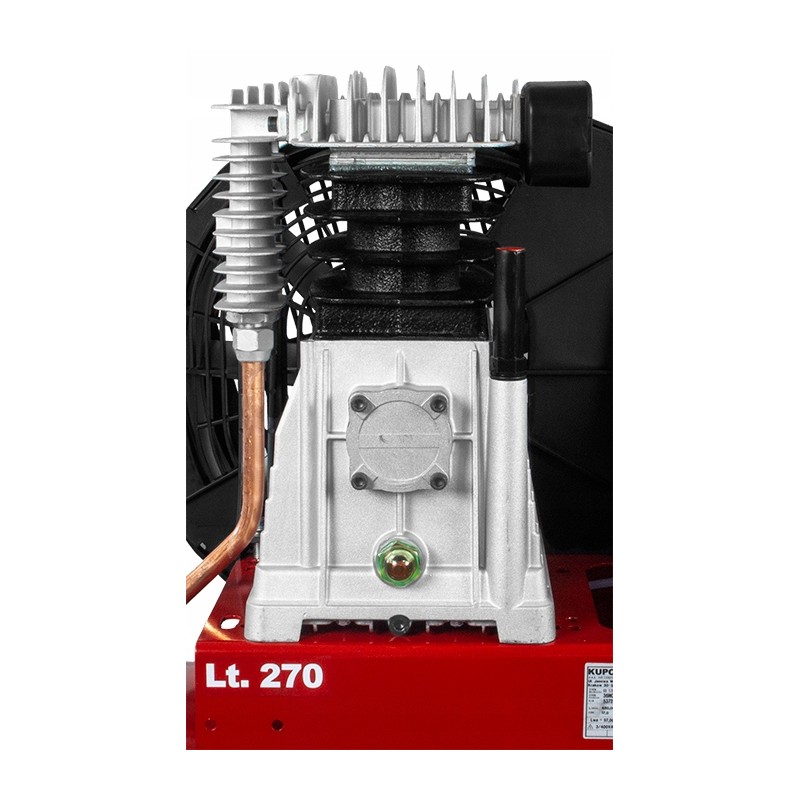

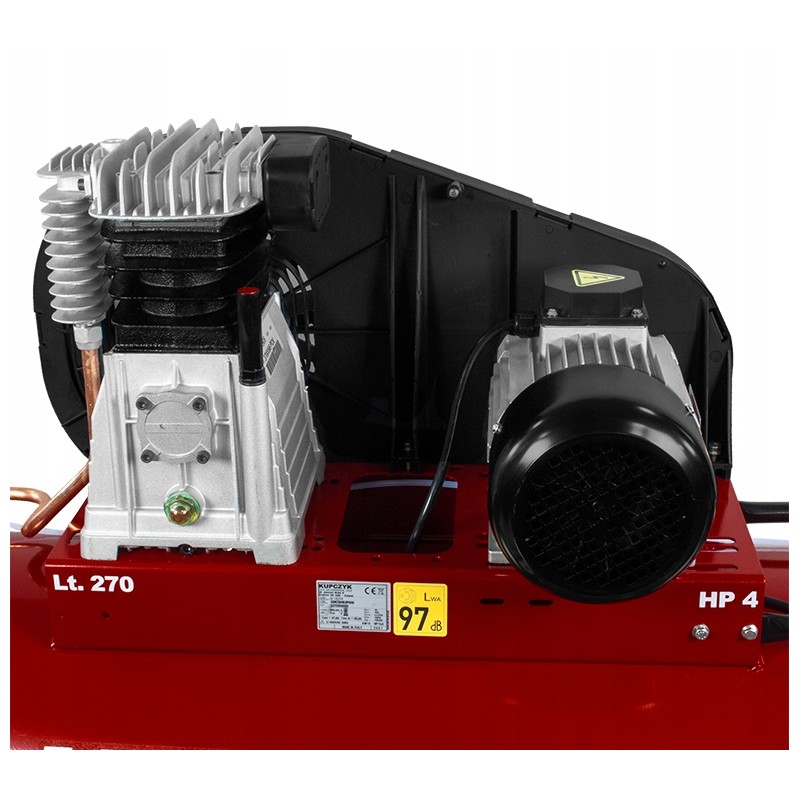

Two-cylinder oil-lubricated piston compressor with one compression ratio equipped with:

cast iron cylinder
aluminum alloy pistons
stainless steel valves
air cooler
pulley for optimum cooling of the compressor
slow-speed pump B3800B has been installed on ABAC compressors in the past
provides longer life 1400 rpm
oil control indicator
check valve

The compressor has:

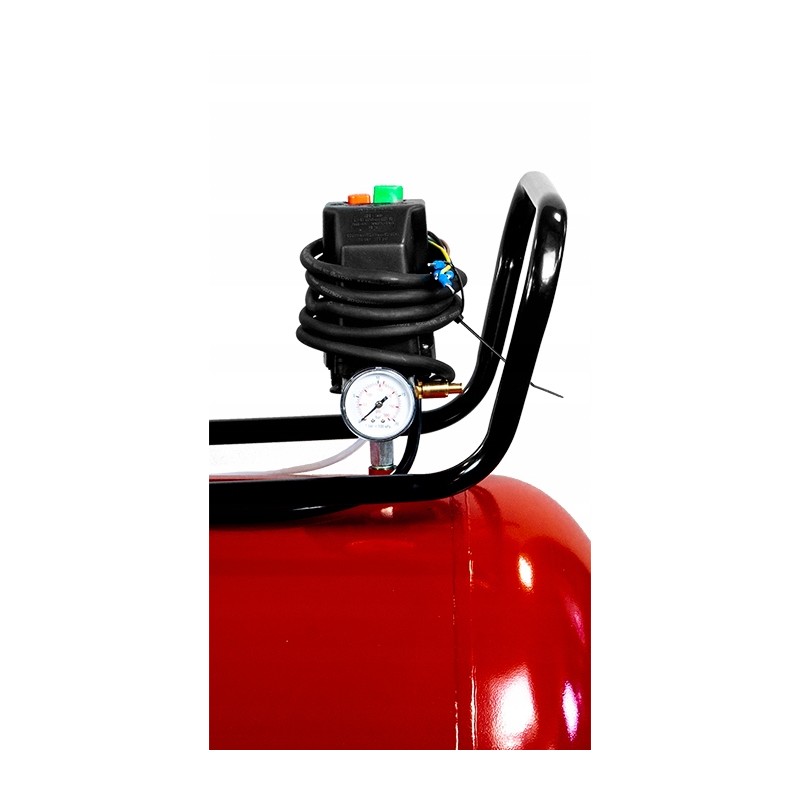

Pressure switch (pressure switch) with relief valve
Thermal protection to prevent overloading
Safety valve
Additional pressure gauge (clock) indicating the current pressure in the tank

Tank 270 liters powder coated and protected against corrosion equipped with:

Condensate drain valve from the tank
Vertical pressure regulator with pressure gauge with two sockets for setting the pressure "at the outlet"
Additional third outlet from the tank ended with a quick-connector socket, used for example to connect a compressed air system

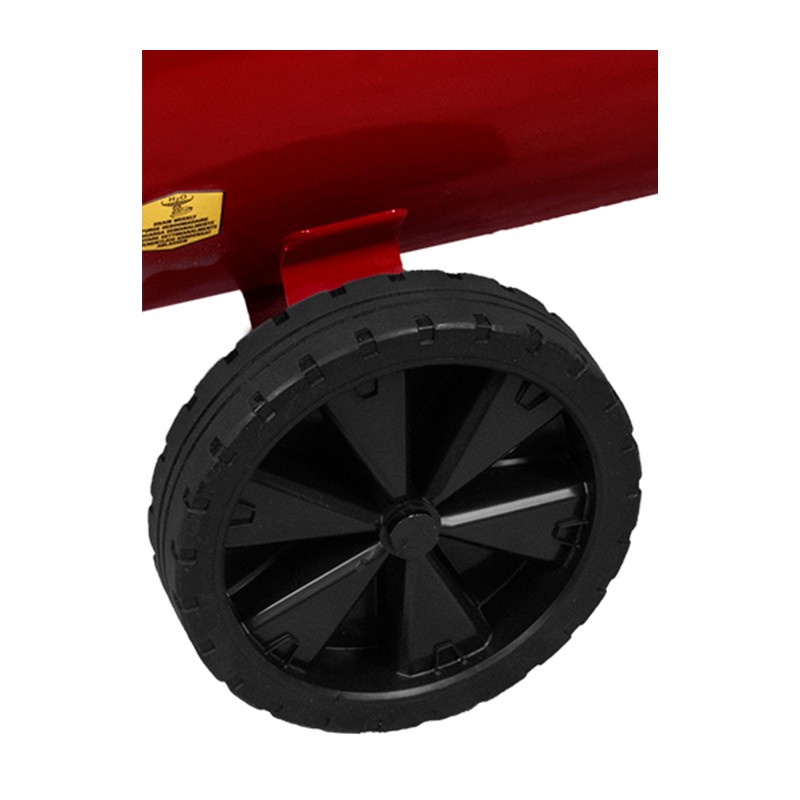

Durable rubberized casters to improve the mobility of the compressor
The compressor is equipped with pulley housing made of high-quality plastic. Such a solution ensures better air flow, increasing the cooling of the compressor.
