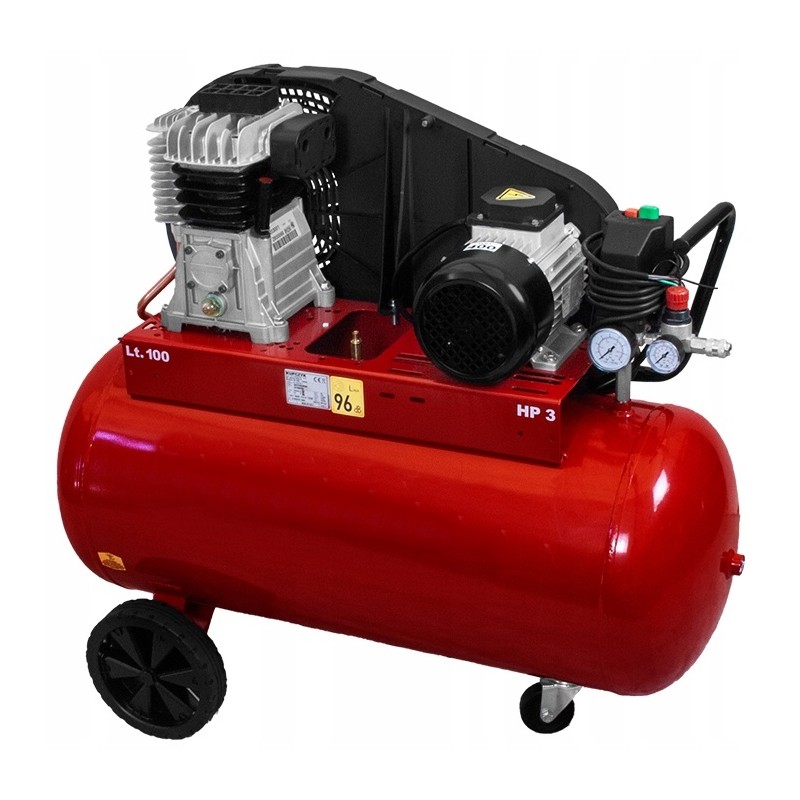

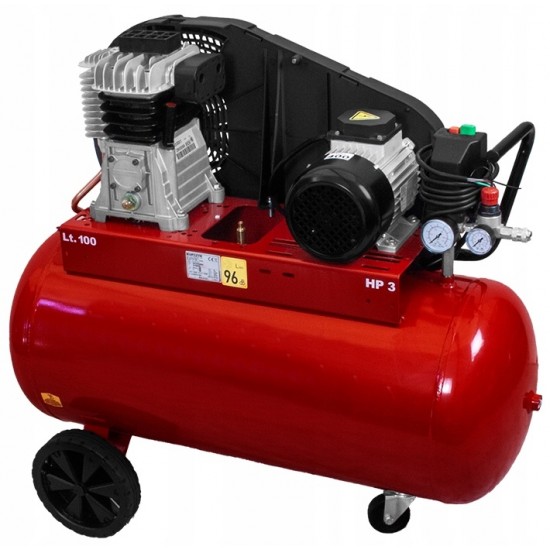

PISTON COMPRESSOR 100L, 400V, KK 420/100T

Reference: KK 420/100T

Add to compare

Compare (0)

PISTON COMPRESSOR 100L, 400V, KK 420/100T

5 624,05 zł tax incl.5624.05 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Availability: This product is no longer in stock

Product description

Piston compressors of the Polish brand are a guarantee of quality and unreliability. Our 20 years of experience in selling compressors allows us to create models that are characterized by the best value for money. The presented model is perfect for work in a small workshop and a home garage. Professionals and do-it-yourselfers can work with it.

Tank 100 Liters Pump B-2800B

NOTE: Delivery time up to 5 working days!

Compressor of EUROPEAN production !!!

Technical Parameters:

Power supply - 400 V
Tank capacity - 100 Liters
Pump type - B-2800 B
Compressor speed - 1570 rpm
Number of pistons - 2
Number of compression stages - 1
Noise level - 96 db
Theoretical capacity - 420 l/min (25.2 m3/h)
Effective capacity - 322 l/min (19.32 m3/h)
Maximum pressure - 10 Bar

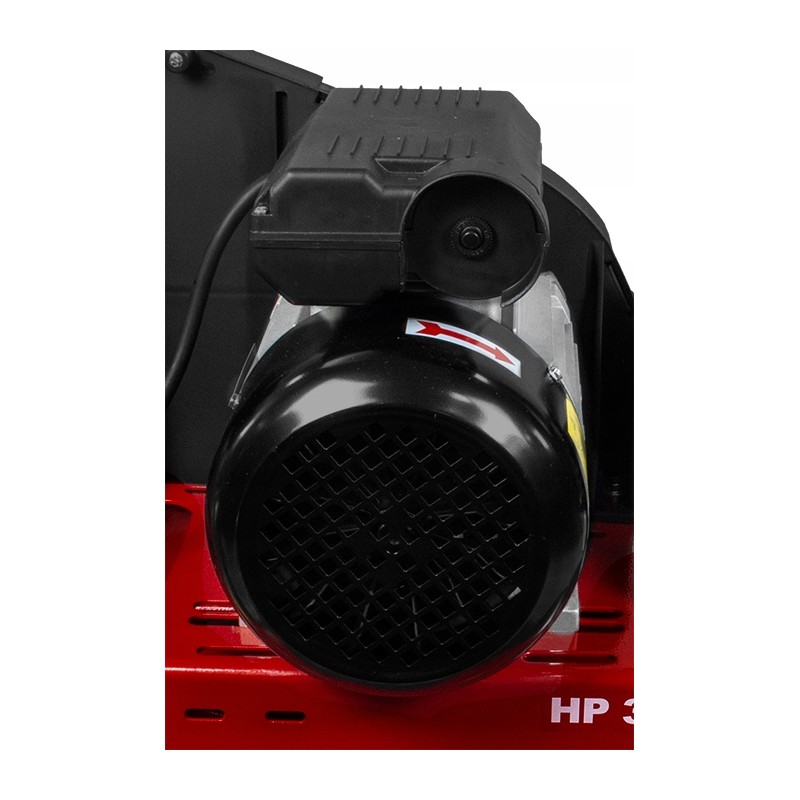

Motor - 2.2 kW (3.0 hp)
Weight: 66 kg
Dimensions: 1030x440x850

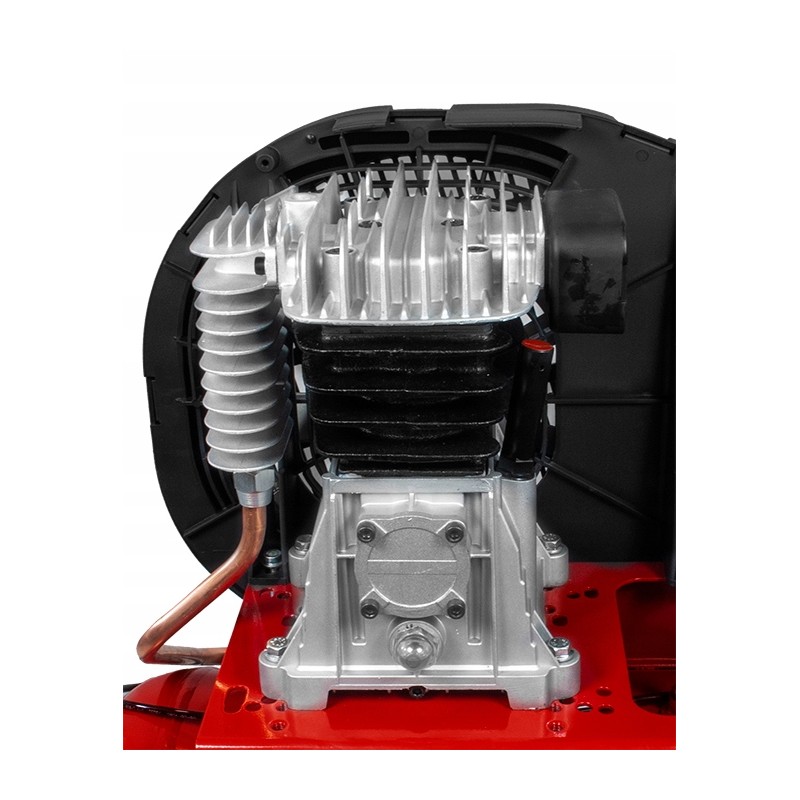

Two-cylinder oil-lubricated piston compressor with one compression ratio equipped with:

cast iron cylinder
aluminum alloy pistons
stainless steel valves
air cooler
pulley for optimum cooling of the compressor
slow-speed pump B2800B has been installed on ABAC compressors in the past
provides longer service life 1570 rpm
oil control indicator

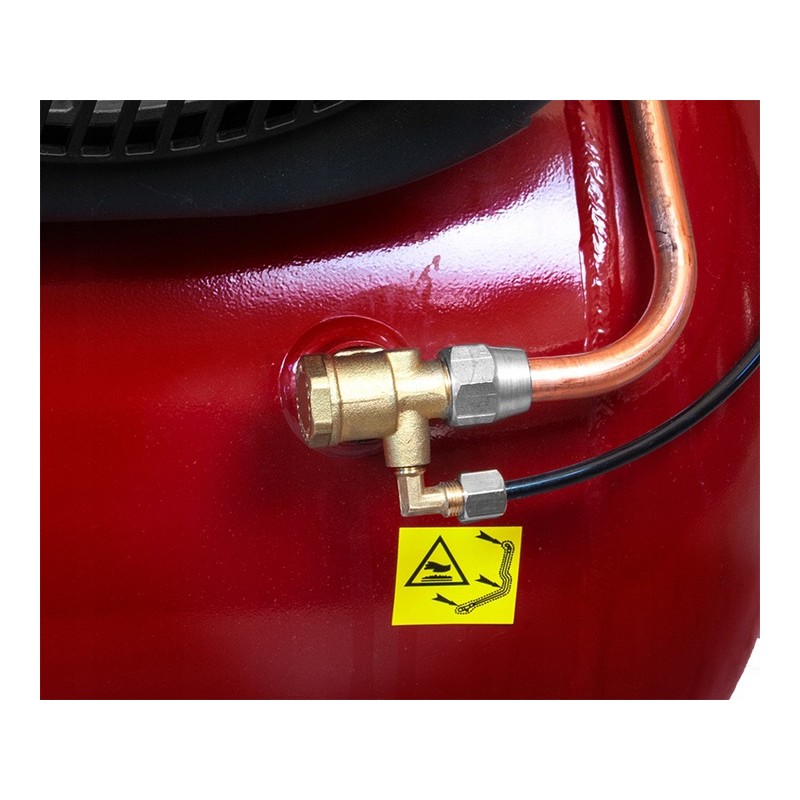

check valve

The compressor has:

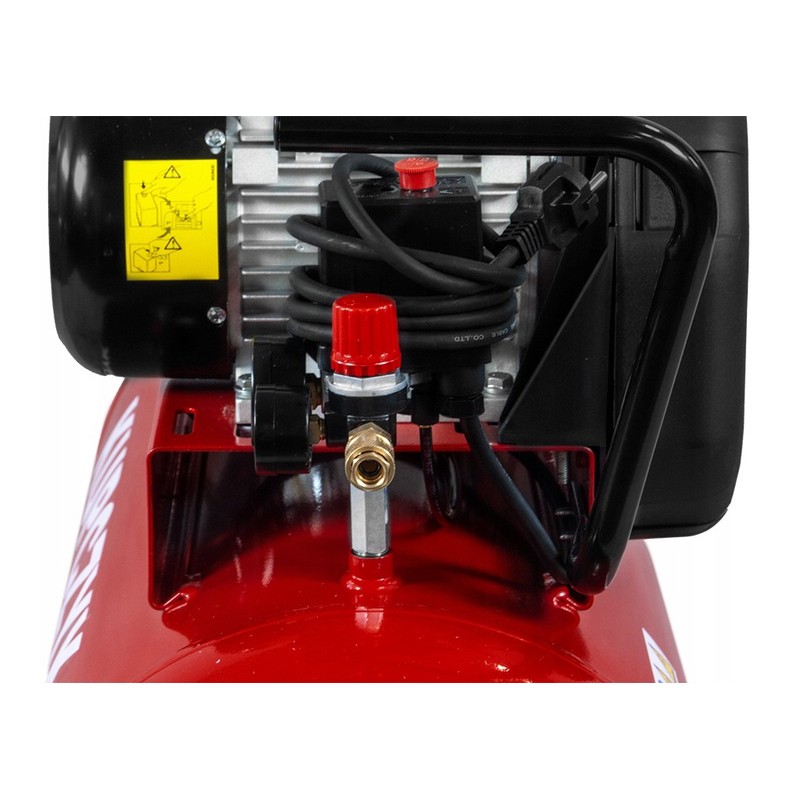

Pressure switch (pressure switch) with relief valve
Thermal protection to prevent overloading
Safety valve
Additional pressure gauge (clock) indicating the current pressure in the tank

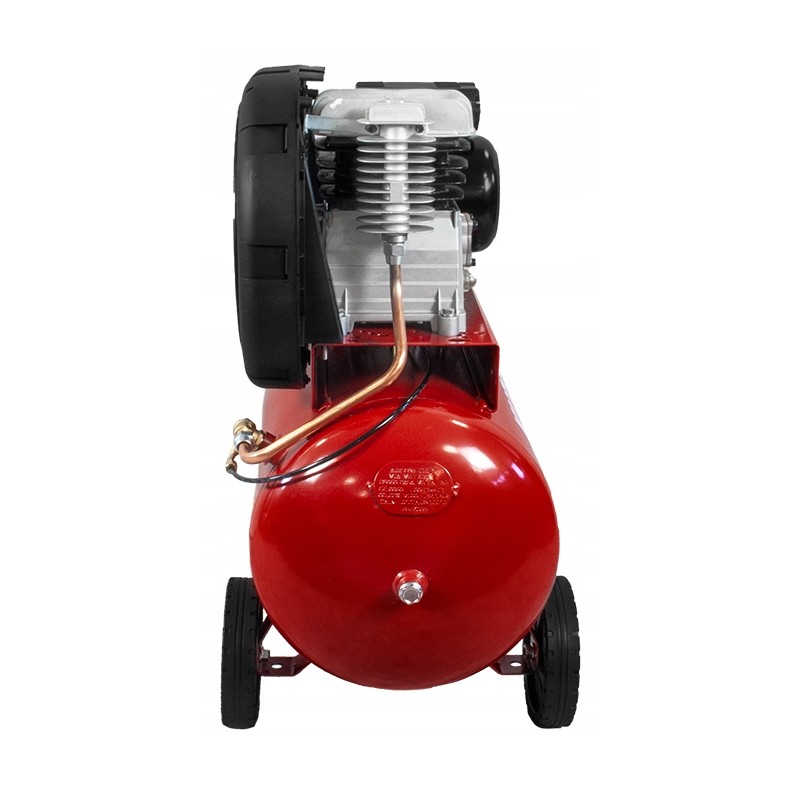

Tank of 100 liters powder coated and protected against corrosion equipped with:

Condensate drain valve from the tank

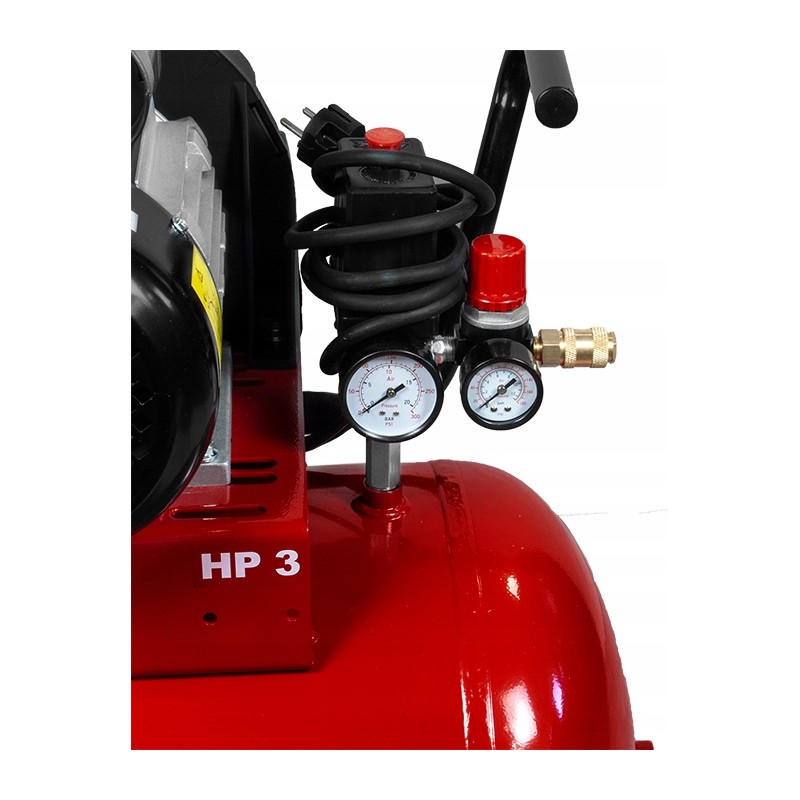

Pressure regulator with pressure gauge and quick coupler for setting the pressure "at the outlet"
Additional outlet from the tank ended with a quick-connector socket, used for example to connect a compressed air system
Durable rubberized casters to improve the mobility of the compressor

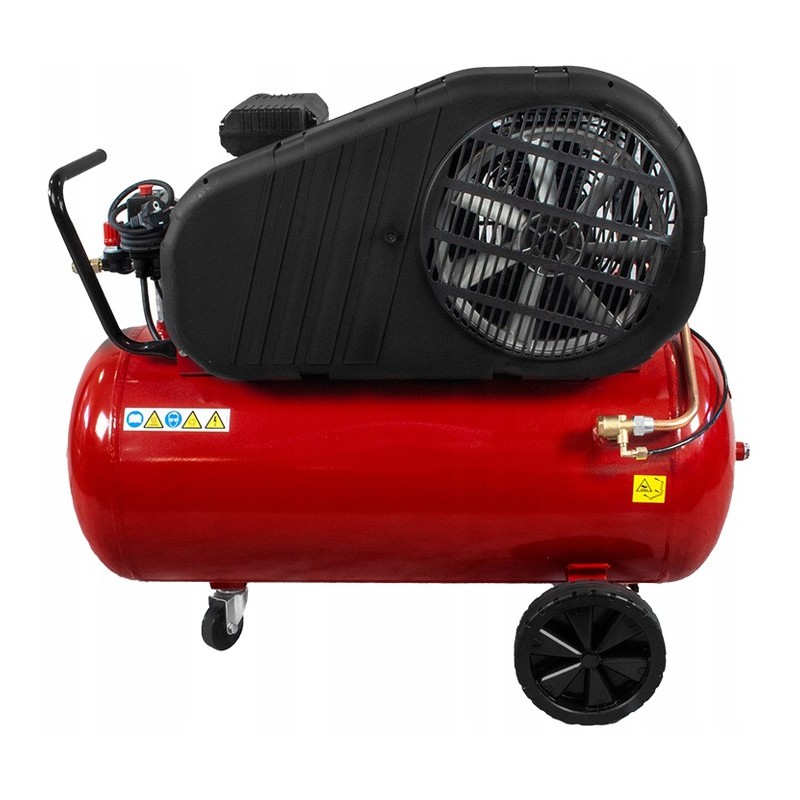

The compressor is equipped with pulley housing made of high-quality plastic. Such a solution ensures better air flow, increasing the cooling of the compressor.
