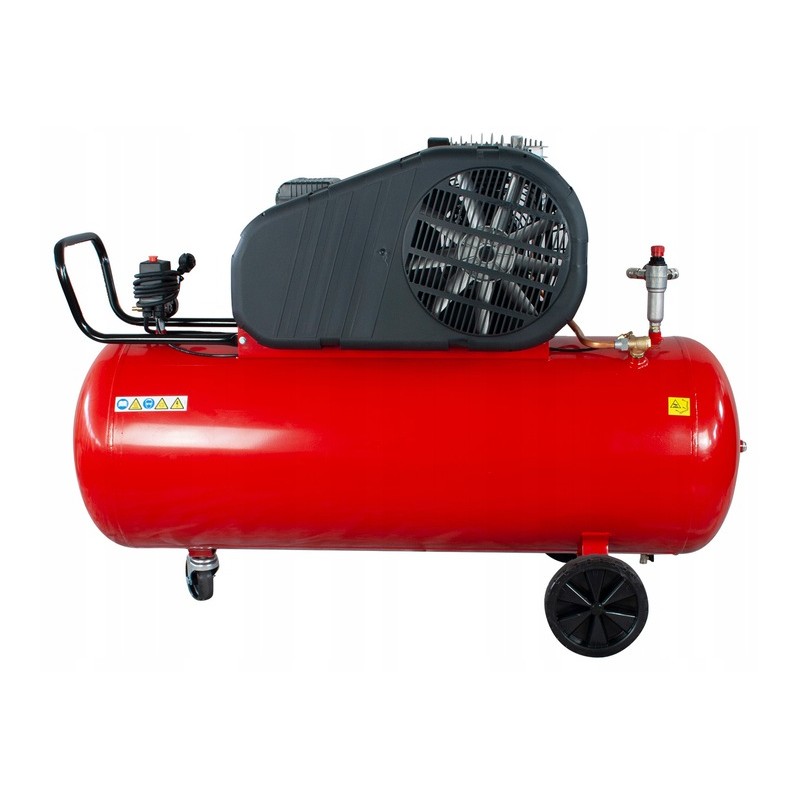

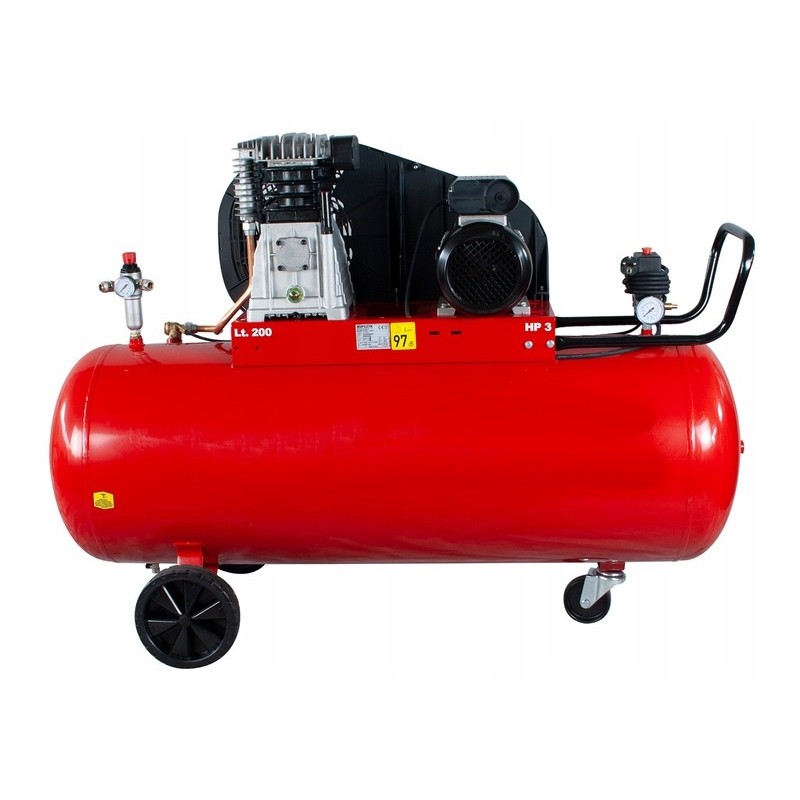

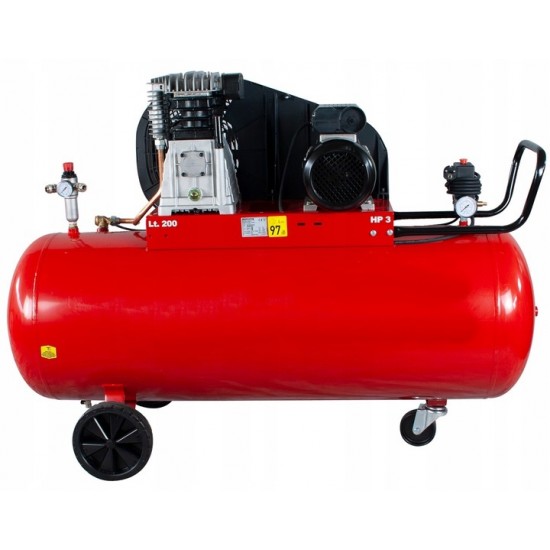

PISTON COMPRESSOR 200L, 230V KK 495/200M

Reference: KK 495/200M

Add to compare

Compare (0)

PISTON COMPRESSOR 200L, 230V KK 495/200M

7 047,04 zł tax incl.7047.04 tax incl.PLN

(Price includes VAT 23%)
(Price doesn't include shipping)

Delivery charges for the orders beyond Poland
will be calculated individually

Availability: This product is no longer in stock

Product decription

Piston compressors of the Polish brand are a guarantee of quality and unreliability. Our 20 years of experience in selling compressors allows us to create models that have the best quality-to-price ratio. The presented model is perfect for use in a small workshop and a home garage. Professionals and do-it-yourselfers can work with it.

NOTE: Delivery time up to 5 working days!

Compressor of EUROPEAN production !!!

Technical Parameters:

Power supply - 230 V
Tank capacity - 200 Liters
Pump type - B-3800 B
Compressor speed - 1100 rpm
Number of pistons - 2
Number of compression stages - 1
Noise level - 96 dB
Theoretical capacity - 495 l/min (29.7 m3/h)
Effective capacity - 327 l/min (19.62 m3/h)
Maximum pressure - 10 Bar
Motor - 2.2 kW (3.0 hp)
Weight: 97 kg
Dimensions: 1350x475x1125mm

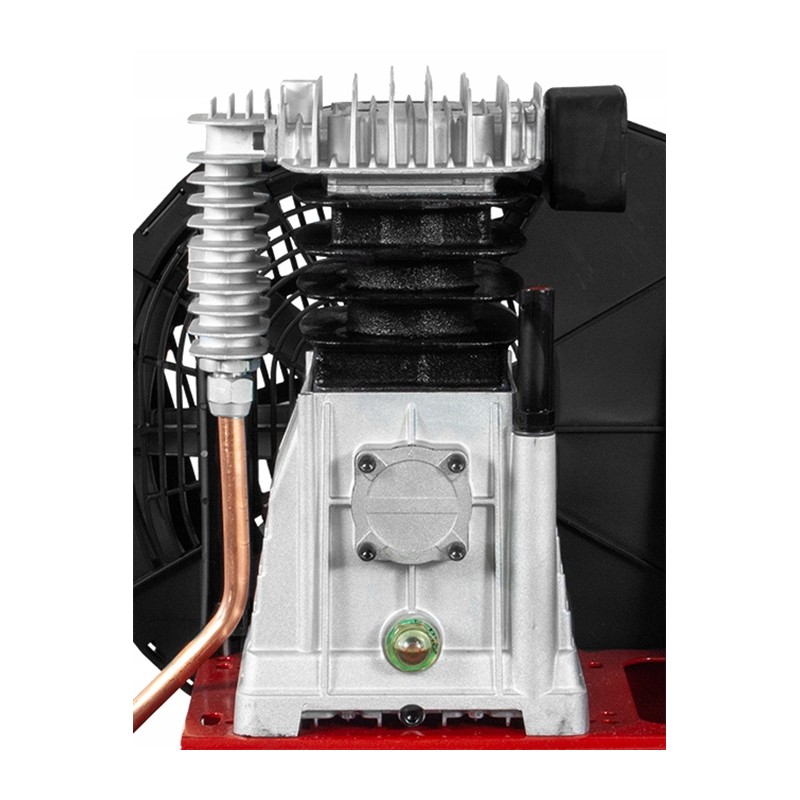

Two-cylinder oil-lubricated piston compressor with one compression ratio equipped with:

cast iron cylinder
aluminum alloy pistons
stainless steel valves
air cooler
pulley for optimum cooling of the compressor
slow-speed pump B3800B has been installed on ABAC compressors in the past
provides longer service life 1100 rpm
oil control indicator
check valve

The compressor has:

Pressure switch (pressure switch) with relief valve
Thermal protection on the motor to protect against overloading
Safety valve
Additional pressure gauge (clock) indicating the current pressure in the tank

Tank 200 liters powder painted and protected against corrosion equipped with:

Condensate drain valve from the tank

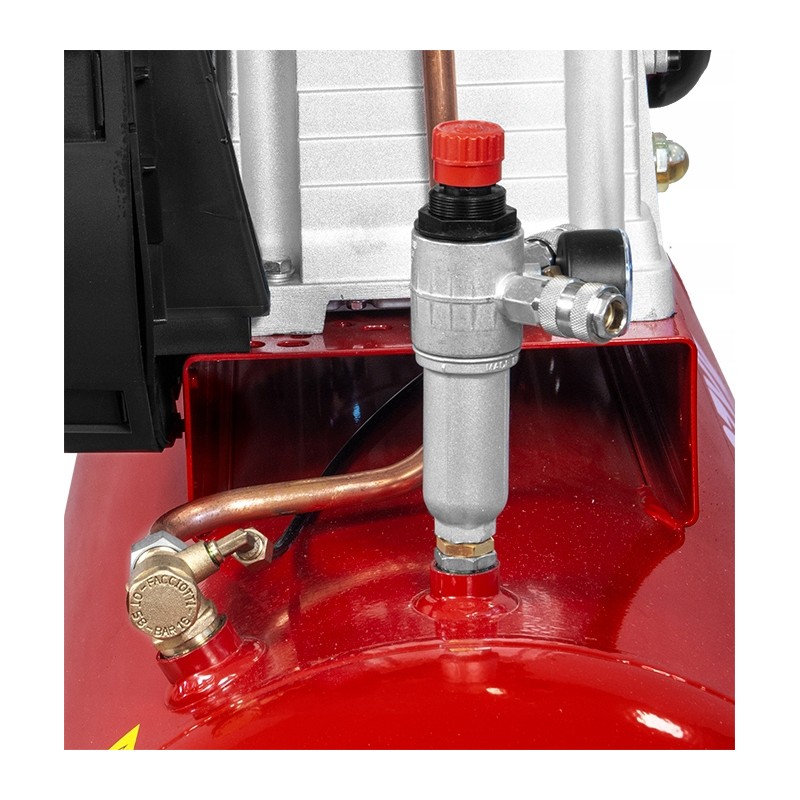

Vertical pressure regulator with pressure gauge with two sockets for setting the pressure "at the outlet"
Additional third outlet from the tank terminated with a quick-connector socket, used, for example, for the connection of a compressed air system
Durable rubberized casters to improve the mobility of the compressor
The compressor is equipped with a pulley housing made of high-quality plastic. Such a solution provides better air flow increasing the cooling of the compressor.
